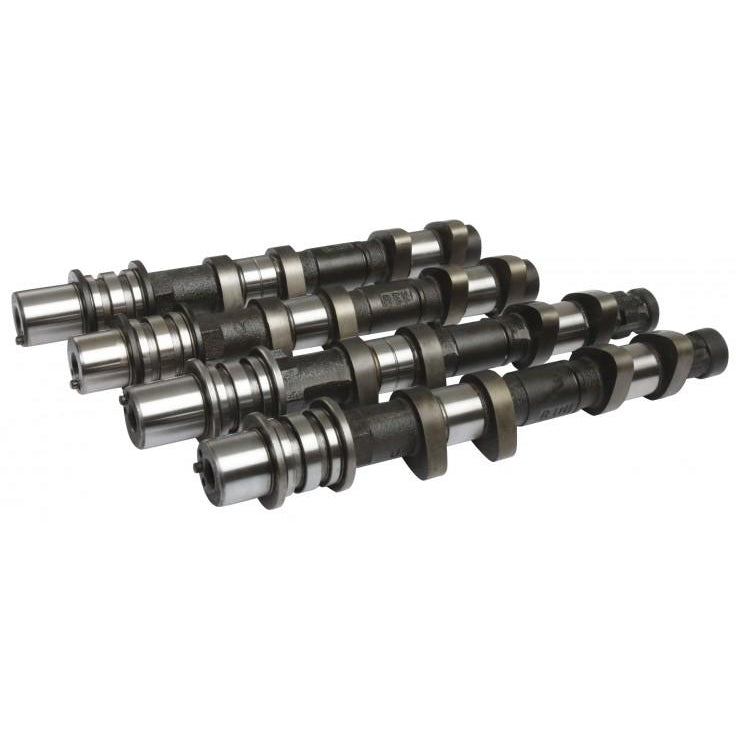

Kelford Cams 199-C Subaru WRX Version 5+ (non AVCS) Performance Cam

$1,758.35 NZD
SKU KC199-C
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

268&264/264 Degrees advertised duration. 10.30mm&10.00mm/10.00mm lift.

Additional Information:

264 degree camshafts to suit street strip and track applications, requires ecu and turbo upgrade.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-C
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.50mm Exhaust: 10.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.30mm Exhaust: 10.00mm
Advertised Duration @ 0.25mm Intake: 268 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 3 BTDC EVO: 43 BBDC
    IVC: 43 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 1.36mm Exhaust: 0.92
