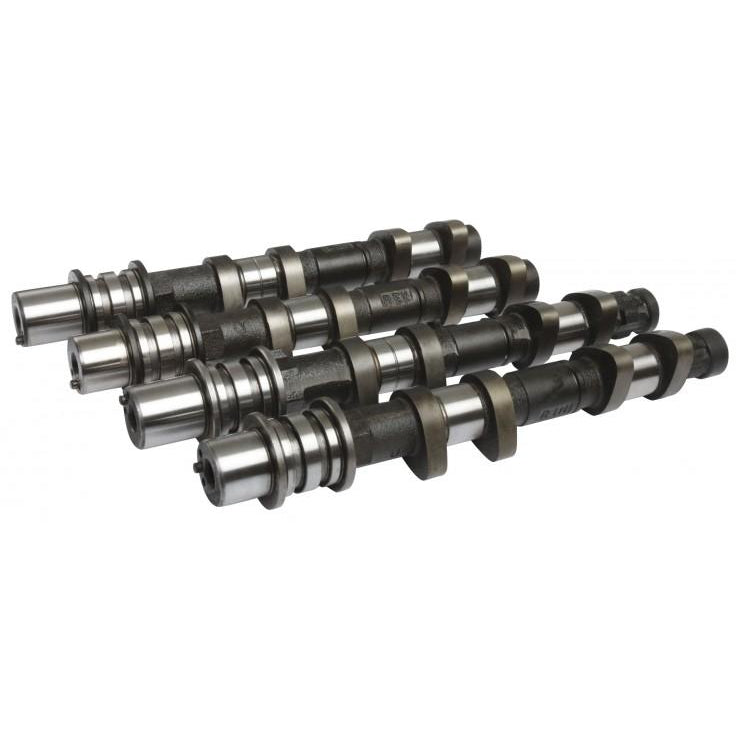

Kelford Cams 199-B Subaru WRX Version 5+ (non AVCS) Performance Cam

$1,758.35 NZD
SKU KC199-B
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

256&252/264 Degrees advertised duration. 9.35mm&9.35mm/9.35mm lift.

Additional Information:

High torque cams to suit near stock engines. Ideal in 36mm restrictor classes.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ20 WRX Version 5-6 non AVCS 199-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 9.60mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.35mm Exhaust: 9.35mm
Advertised Duration @ 0.25mm Intake: 256 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 218 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 1 ATDC EVO: 43 BBDC
    IVC: 39 ABDC EVC: 1 BTDC
Suggested Centre Lines:   Intake: 110 Exhaust: 112
VALVE Lift @ TDC Intake: 0.91mm Exhaust: 0.92
