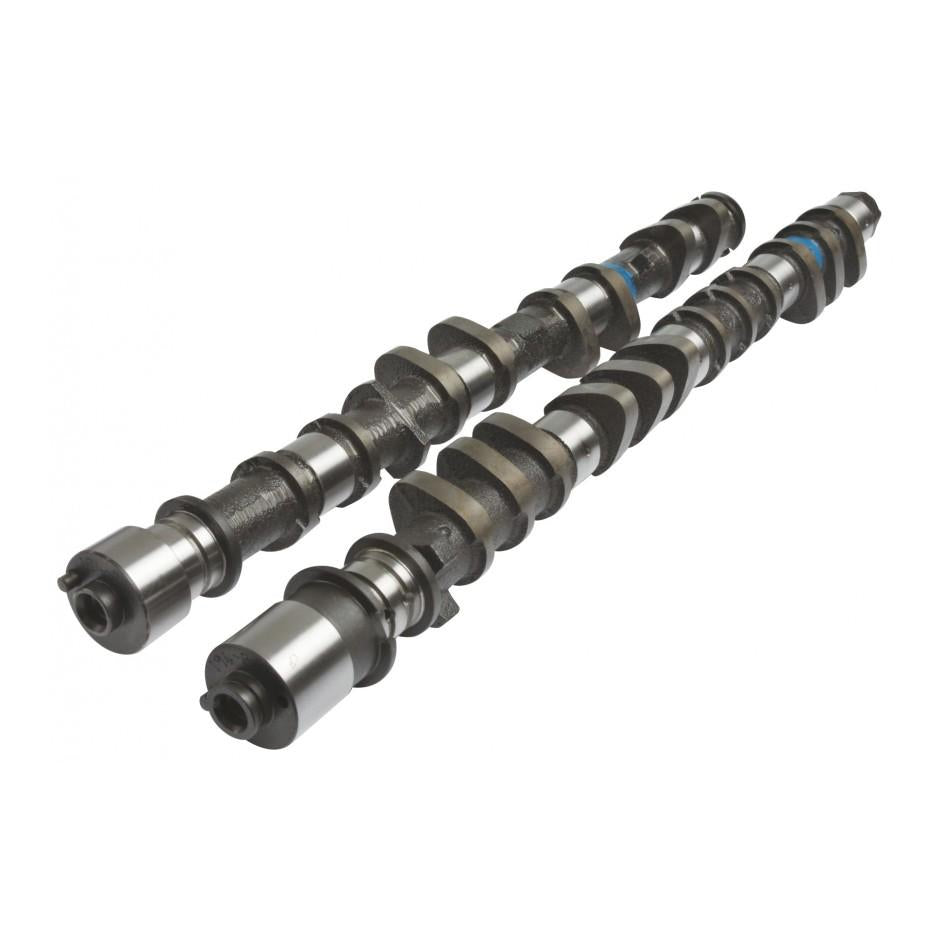

Kelford Cams 194-E Toyota 4A-GE 20V Performance Cam

$1,240.85 NZD
SKU KC194-E
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

302/290 Degrees advertised duration. 10.50mm/10.00mm lift.

Additional Information:

Racing cams to suit high compression, high RPM professionally built competition engine in a light car. Great with 7A short block. These cams are not for use with VVT.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE, 20 VALVE 194-E
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.75mm Exhaust: 10.30mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.50mm Exhaust: 10.00mm
Advertised Duration @ 0.10mm Intake: 302 Exhaust: 290
Duration @ 1.00mm VALVE LIFT Intake: 266 Exhaust: 250
Timing @ 1.00mm VALVE LIFT IVO: 33 BTDC EVO: 50 BBDC
    IVC: 53 ABDC EVC: 20 ATDC
Suggested Centre Lines:   Intake: 100 Exhaust: 105
VALVE Lift @ TDC Intake: 4.08mm Exhaust: 2.87
