CONTACT US TO ORDER - OUT OF STOCK

This product is currently out of stock. Enter your details delow and the Speed Science team will be in touch.

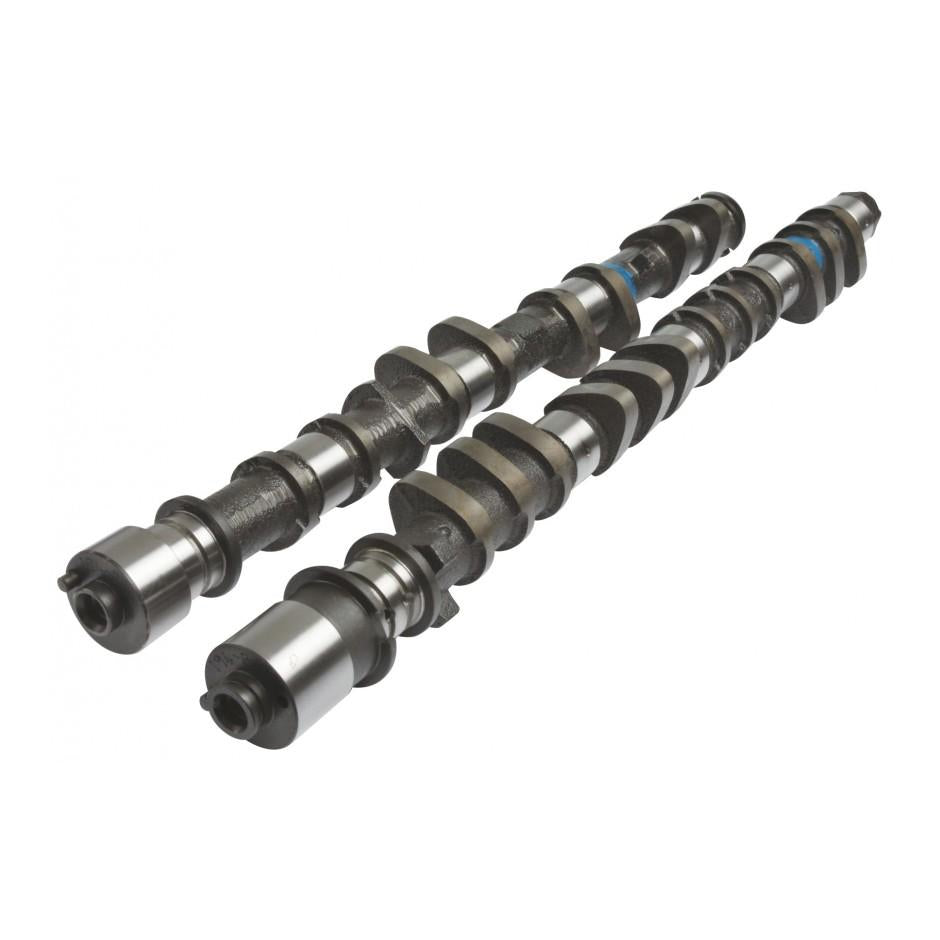

Kelford Cams 194-D Toyota 4A-GE 20V Performance Cam

$1,240.85 NZD
SKU KC194-D
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

290/284 Degrees advertised duration. 10.00mm/9.95mm lift.

Additional Information:

Racing cams for well optimised engines, great with 7A short block. These cams are not for use with VVT.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE, 20 VALVE 194-D
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.25mm Exhaust: 10.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.00mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 290 Exhaust: 284
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 23 BTDC EVO: 49 BBDC
    IVC: 47 ABDC EVC: 19 ATDC
Suggested Centre Lines:   Intake: 102 Exhaust: 105
VALVE Lift @ TDC Intake: 3.16mm Exhaust: 2.74
