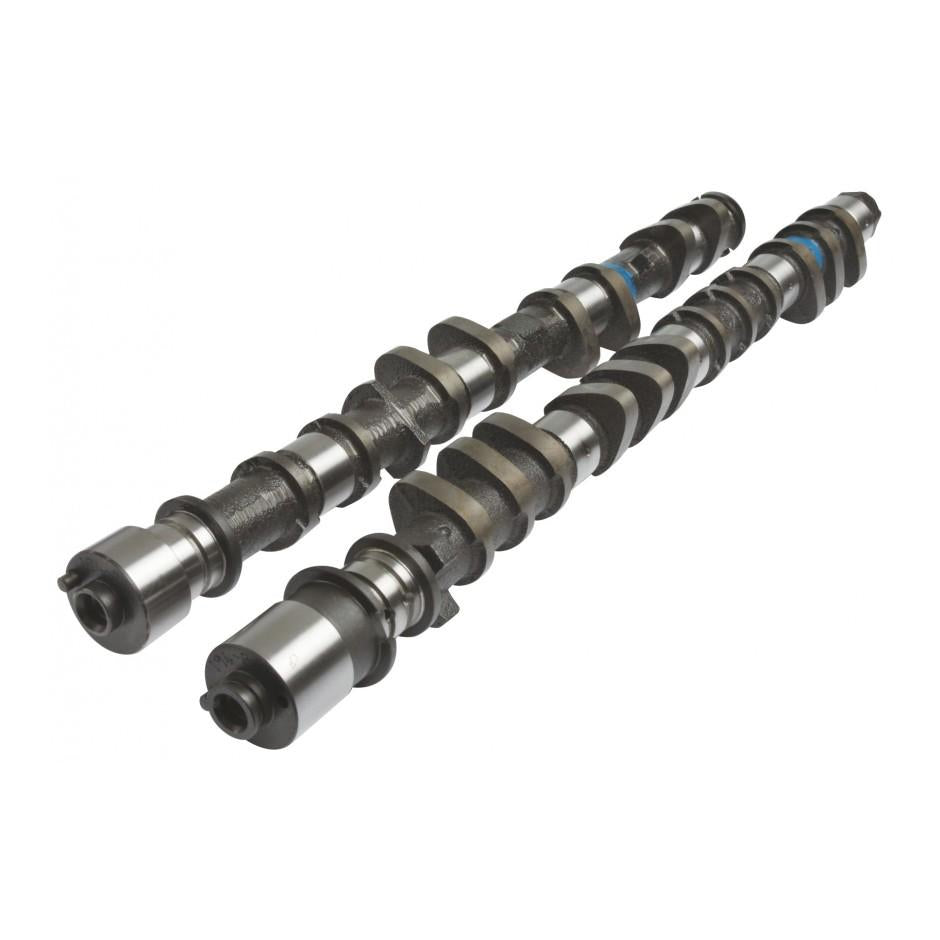

Kelford Cams 194-C Toyota 4A-GE 20V Performance Cam

$1,240.85 NZD
SKU KC194-C
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

284/278 Degrees advertised duration. 9.30mm/8.50mm lift.

Additional Information:

Racing cams to suit slightly modified engines. These cams can run VVT or use adjustable gears to set fixed timing.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE, 20 VALVE 194-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.55mm Exhaust: 8.80mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.30mm Exhaust: 8.50mm
Advertised Duration @ 0.10mm Intake: 284 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 248 Exhaust: 242
Timing @ 1.00mm VALVE LIFT IVO: 4 BTDC EVO: 46 BBDC
    IVC: 64 ABDC EVC: 16 ATDC
Suggested Centre Lines:   Intake: 120 Exhaust: 105
VALVE Lift @ TDC Intake: 1.29mm Exhaust: 2.52
