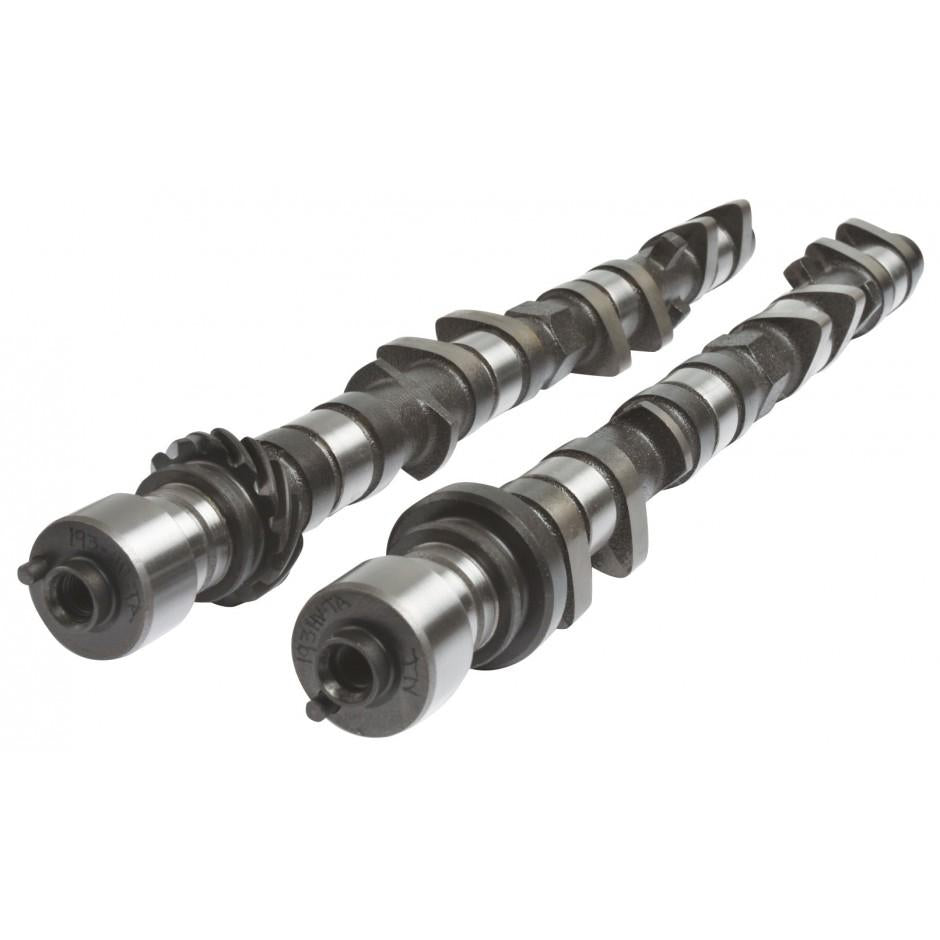

Kelford Cams 193HV-C Toyota 4A-GE 16V (Shim Under Bucket) Performance Cam

$1,240.85 NZD
SKU KC193HV-C
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

318/304 Degrees advertised duration. 11.00mm/10.10mm lift.

Additional Information:

All motor drag race or single seater circuit car cams.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v (shim under bucket) 193HV-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.25mm Exhaust: 10.40mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 10.10mm
Advertised Duration @ 0.30mm Intake: 318 Exhaust: 304
Duration @ 1.00mm VALVE LIFT Intake: 272 Exhaust: 262
Timing @ 1.00mm VALVE LIFT IVO: 38 BTDC EVO: 54 BBDC
    IVC: 54 ABDC EVC: 28 ATDC
Suggested Centre Lines:   Intake: 98 Exhaust: 103
VALVE Lift @ TDC Intake: 5.08mm Exhaust: 3.68
