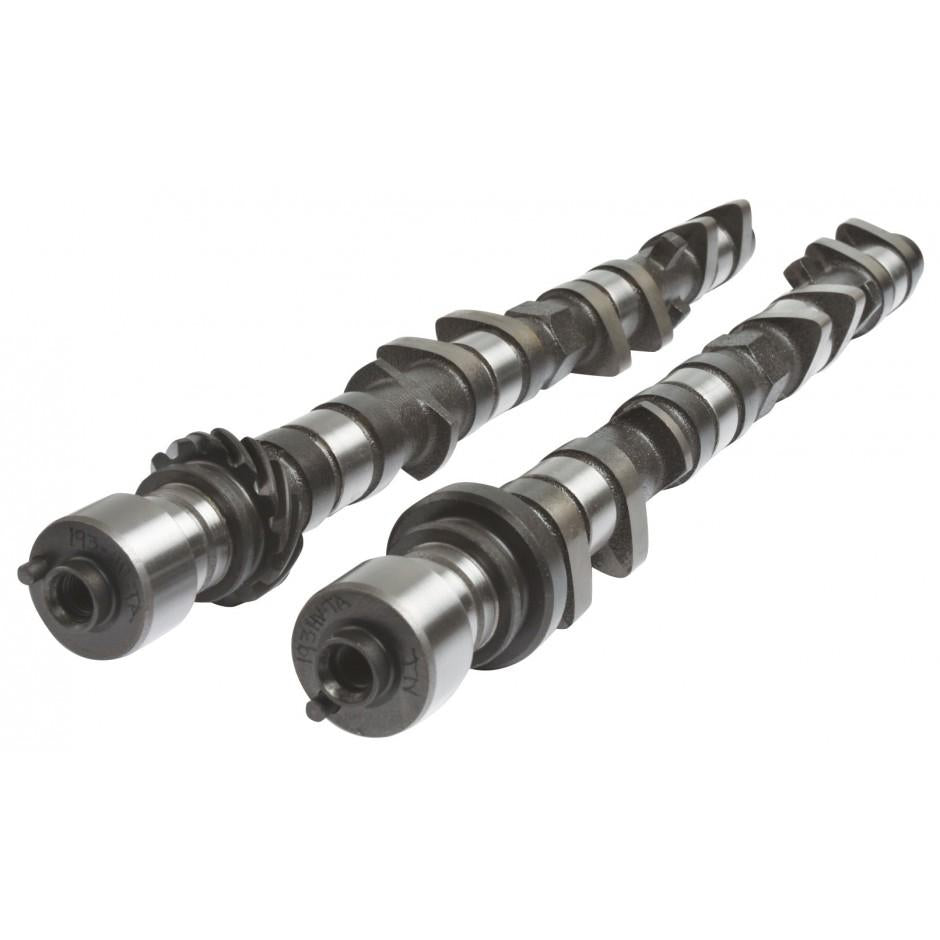

Kelford Cams 193HV-B Toyota 4A-GE 16V (Shim Under Bucket) Performance Cam

$1,240.85 NZD
SKU KC193HV-B
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

300/294 Degrees advertised duration. 10.50mm/10.25mm lift.

Additional Information:

Race cams to suit professionally built competition engines.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v (shim under bucket) 193HV-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.75mm Exhaust: 10.55mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.50mm Exhaust: 10.25mm
Advertised Duration @ 0.30mm Intake: 300 Exhaust: 294
Duration @ 1.00mm VALVE LIFT Intake: 258 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 30 BTDC EVO: 47 BBDC
    IVC: 48 ABDC EVC: 21 ATDC
Suggested Centre Lines:   Intake: 99 Exhaust: 103
VALVE Lift @ TDC Intake: 4.22mm Exhaust: 3.32
