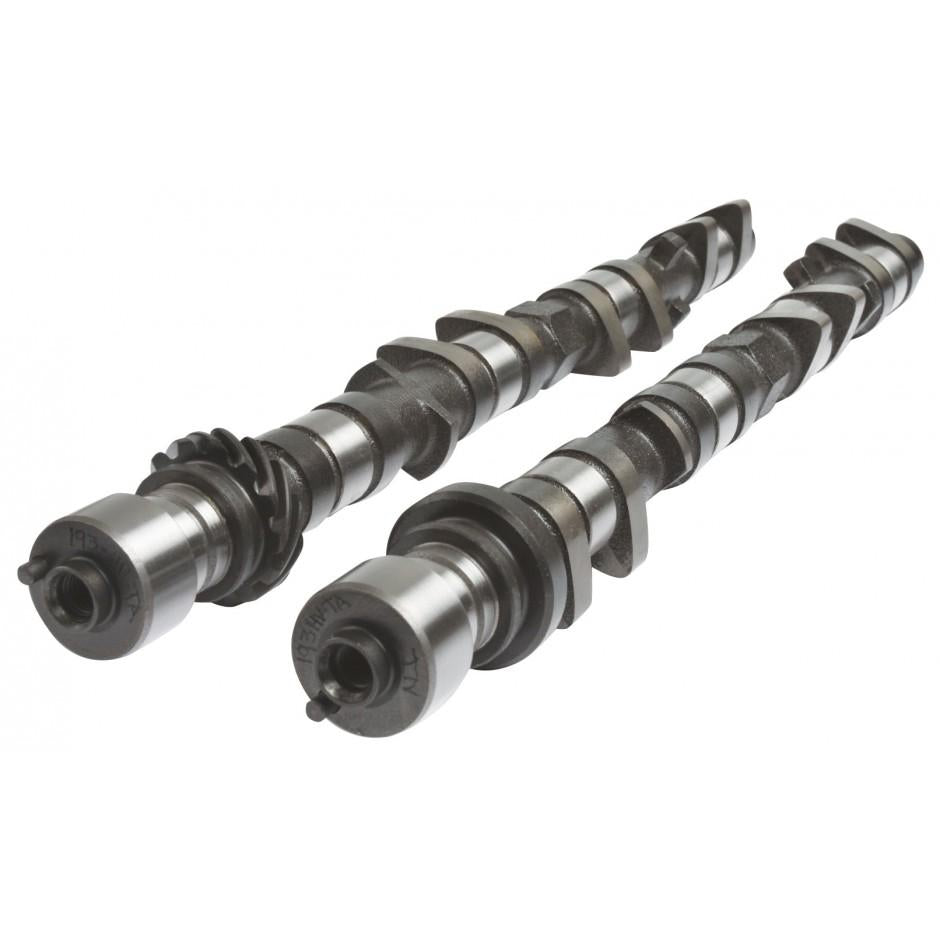

Kelford Cams 193HV-A Toyota 4A-GE 16V (Shim Under Bucket) Performance Cam

$1,240.85 NZD
SKU KC193HV-A
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

290/282 Degrees advertised duration. 10.30mm/10.10mm lift.

Additional Information:

Rally cams to suit big valve head, increased compression etc.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v (shim under bucket) 193HV-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.55mm Exhaust: 10.40mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.30mm Exhaust: 10.10mm
Advertised Duration @ 0.30mm Intake: 290 Exhaust: 282
Duration @ 1.00mm VALVE LIFT Intake: 248 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 25 BTDC EVO: 45 BBDC
    IVC: 43 ABDC EVC: 15 ATDC
Suggested Centre Lines:   Intake: 99 Exhaust: 105
VALVE Lift @ TDC Intake: 3.60mm Exhaust: 2.53
