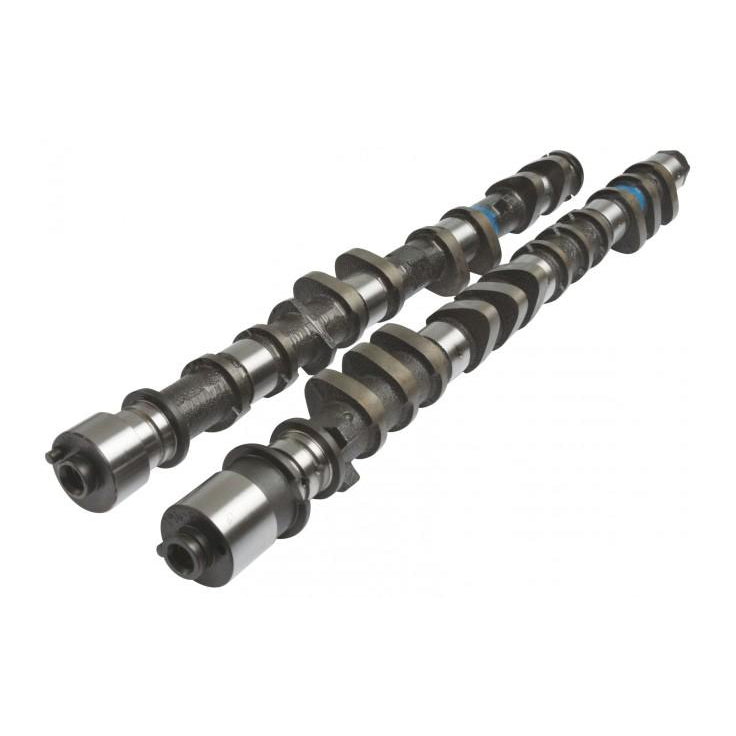

Kelford Cams 194-B Toyota 4A-GE 20V Performance Cam

$1,240.85 NZD
SKU KC194-B
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

270/270 Degrees advertised duration. 8.70mm/8.65mm lift.

Additional Information:

Rally cams for great power gains across the entire RPM range in mildly tuned engines.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE, 20 VALVE 194-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 8.95mm Exhaust: 8.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.70mm Exhaust: 8.65mm
Advertised Duration @ 0.10mm Intake: 270 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 4 ATDC EVO: 41 BBDC
    IVC: 56 ABDC EVC: 11 ATDC
Suggested Centre Lines:   Intake: 120 Exhaust: 105
VALVE Lift @ TDC Intake: 0.63mm Exhaust: 2.00
