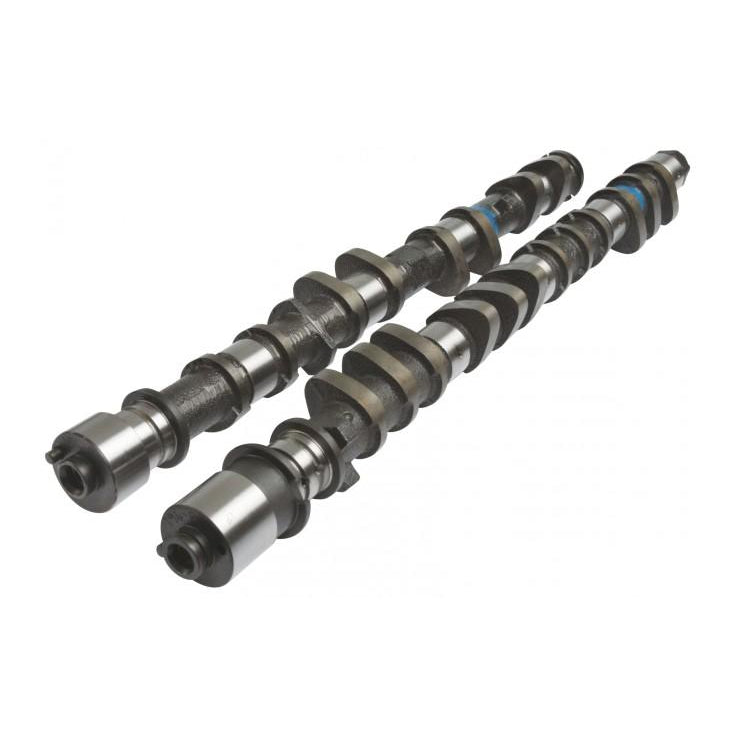

Kelford Cams 194-A Toyota 4A-GE 20V Performance Cam

$1,240.85 NZD
SKU KC194-A
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

264/264 Degrees advertised duration. 8.20mm/8.15mm lift.

Additional Information:

Stage 1 high performance cams for a fast street car with a stock engine.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE, 20 VALVE 194-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 8.45mm Exhaust: 8.45mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.20mm Exhaust: 8.15mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 264
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 228
Timing @ 1.00mm VALVE LIFT IVO: 6 ATDC EVO: 40 BBDC
    IVC: 54 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 120 Exhaust: 106
VALVE Lift @ TDC Intake: 0.58mm Exhaust: 1.75
