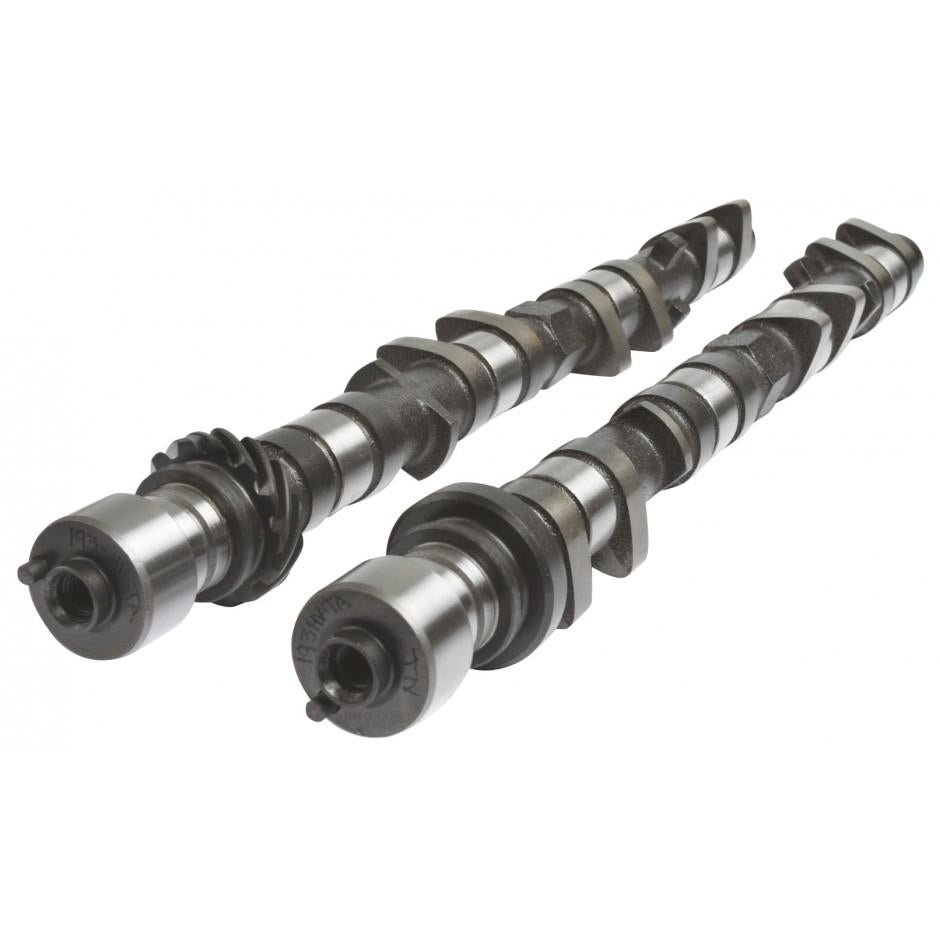

Kelford Cams 193-T Toyota 4A-GE 16V (Stock Shim) Performance Cam

$1,240.85 NZD
SKU KC193-T
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

262/266 Degrees advertised duration. 8.25mm/8.25mm lift.

Additional Information:

Turbo cams with reduced overlap to suit street and race applications.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v 193-T
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 8.50mm Exhaust: 8.55mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.25mm Exhaust: 8.25mm
Advertised Duration @ 0.30mm Intake: 262 Exhaust: 266
Duration @ 1.00mm VALVE LIFT Intake: 220 Exhaust: 226
Timing @ 1.00mm VALVE LIFT IVO: 2 BTDC EVO: 49 BBDC
    IVC: 38 ABDC EVC: 3 BTDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 1.19mm Exhaust: 0.73
