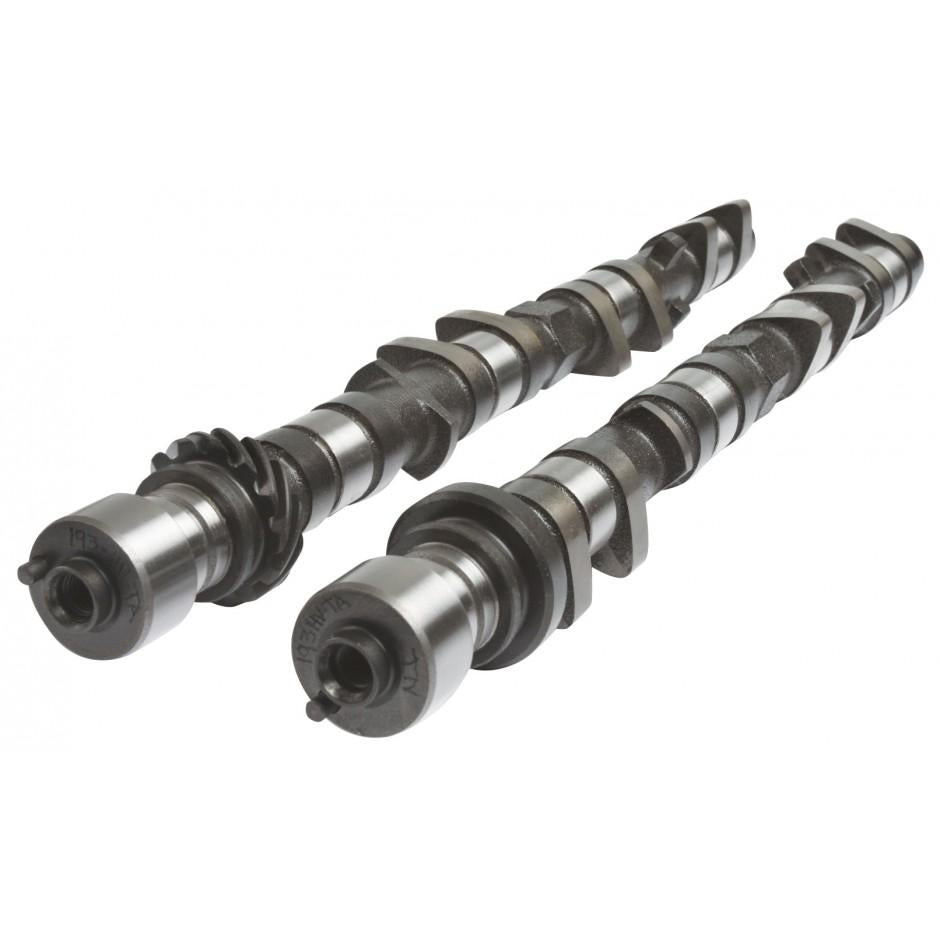

Kelford Cams 193-C Toyota 4A-GE 16V (Stock Shim) Performance Cam

$1,240.85 NZD
SKU KC193-C
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

298/288 Degrees advertised duration. 9.52mm/9.15mm lift.

Additional Information:

Race cams to suit increased compression, ported head etc.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v 193-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.77mm Exhaust: 9.45mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.52mm Exhaust: 9.15mm
Advertised Duration @ 0.30mm Intake: 298 Exhaust: 288
Duration @ 1.00mm VALVE LIFT Intake: 254 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: 27 BTDC EVO: 46 BBDC
    IVC: 47 ABDC EVC: 18 ATDC
Suggested Centre Lines:   Intake: 100 Exhaust: 104
VALVE Lift @ TDC Intake: 3.56mm Exhaust: 2.8
