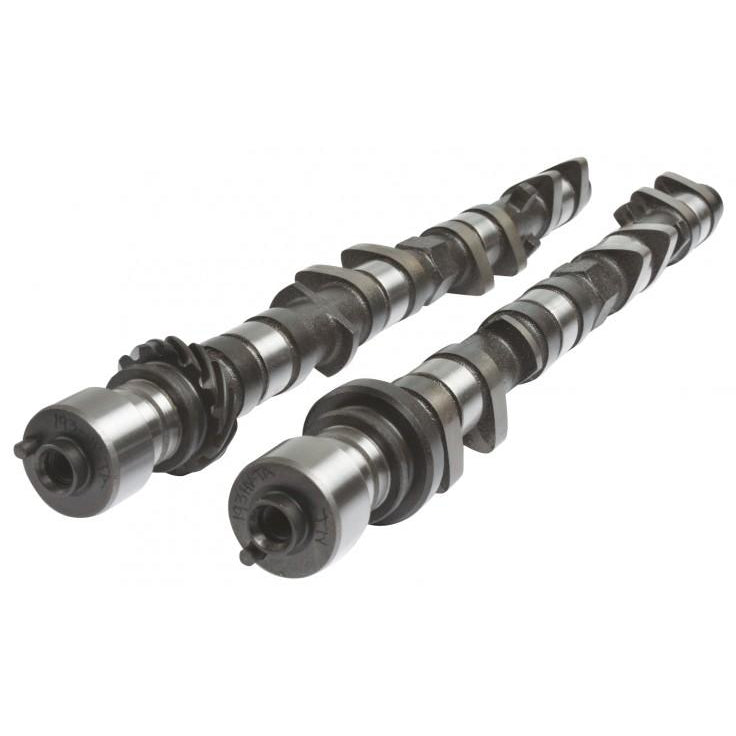

Kelford Cams 193-A Toyota 4A-GE 16V (Stock Shim) Performance Cam

$1,240.85 NZD
SKU KC193-A
Buy now pay later,no extra cost!

Payments from $124.08 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

266/262 Degrees advertised duration. 8.59mm/8.20mm lift.

Additional Information:

Fast street cams, can run stock ECU.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 4A-GE 16v 193-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 8.84mm Exhaust: 8.50mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 8.59mm Exhaust: 8.20mm
Advertised Duration @ 0.30mm Intake: 266 Exhaust: 262
Duration @ 1.00mm VALVE LIFT Intake: 226 Exhaust: 220
Timing @ 1.00mm VALVE LIFT IVO: 5 BTDC EVO: 40 BBDC
    IVC: 41 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 108 Exhaust: 110
VALVE Lift @ TDC Intake: 1.58mm Exhaust: 1
