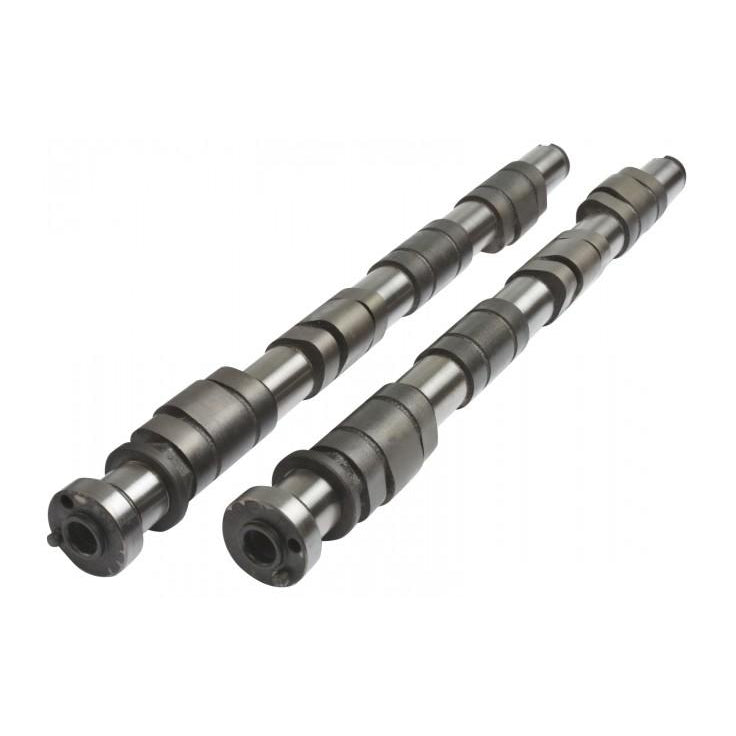

Kelford Cams 184-ST Nissan SR16VE / 20VE Turbo cam set

$1,689.35 NZD
SKU KC184-ST
Buy now pay later,no extra cost!

Payments from $168.93 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

290/290 Degrees advertised duration, 10.60mm/10.60mm lift.

Additional Information

Nissan SR20VE-T cams for high performance, turbocharged street cars. Primary lobe specification is 252/248 Degrees advertised duration, 10.20mm/8.30mm lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-ST
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 6.83mm Exhaust: 7.03mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.60mm
Advertised Duration @ 0.10mm Intake: 290 Exhaust: 290
Duration @ 1.00mm VALVE LIFT Intake: 246 Exhaust: 246
Timing @ 1.00mm VALVE LIFT IVO: 15 BTDC EVO: 59 BBDC
    IVC: 51 ABDC EVC: 7 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 2.10mm Exhaust: 1.42
