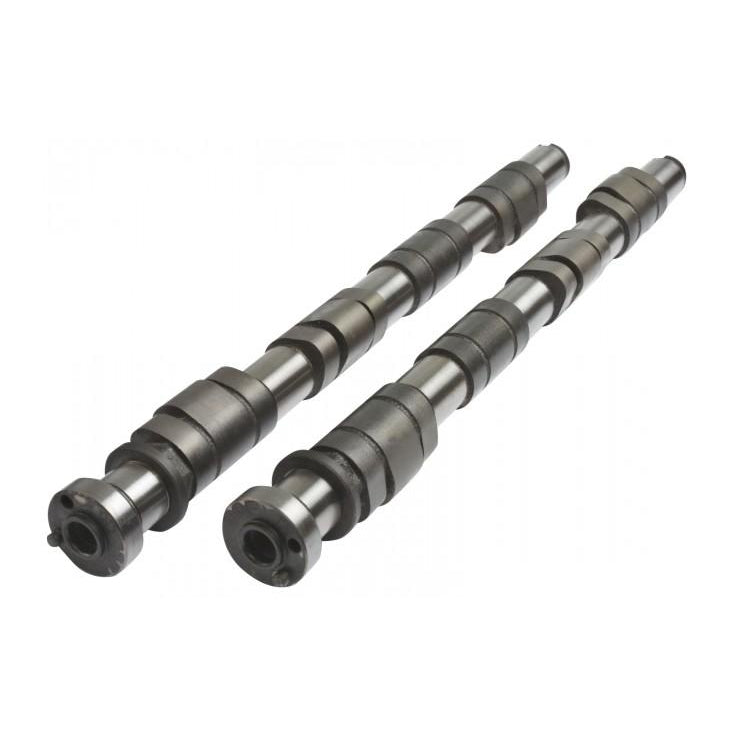

Kelford Cams 184-E Nissan SR16VE / 20VE Performance Cams

$1,689.35 NZD
SKU KC184-E
Buy now pay later,no extra cost!

Payments from $168.93 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

318/312 Degrees advertised duration, 13.00mm/11.80mm lift.

Additional Information

Racing cams to suit large capacity, IR drag or track racing engines. Ideal in a light car with close ratio gears. Not for street cars. Primary lobe specification is 260/252 Degrees advertised duration, 10.20mm/10.20mm lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-E
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 8.33mm Exhaust: 7.78mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 13.00mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 318 Exhaust: 312
Duration @ 1.00mm VALVE LIFT Intake: 274 Exhaust: 262
Timing @ 1.00mm VALVE LIFT IVO: 36 BTDC EVO: 49 BBDC
    IVC: 58 ABDC EVC: 33 ATDC
Suggested Centre Lines:   Intake: 101 Exhaust: 98
VALVE Lift @ TDC Intake: 5.05mm Exhaust: 3.94
