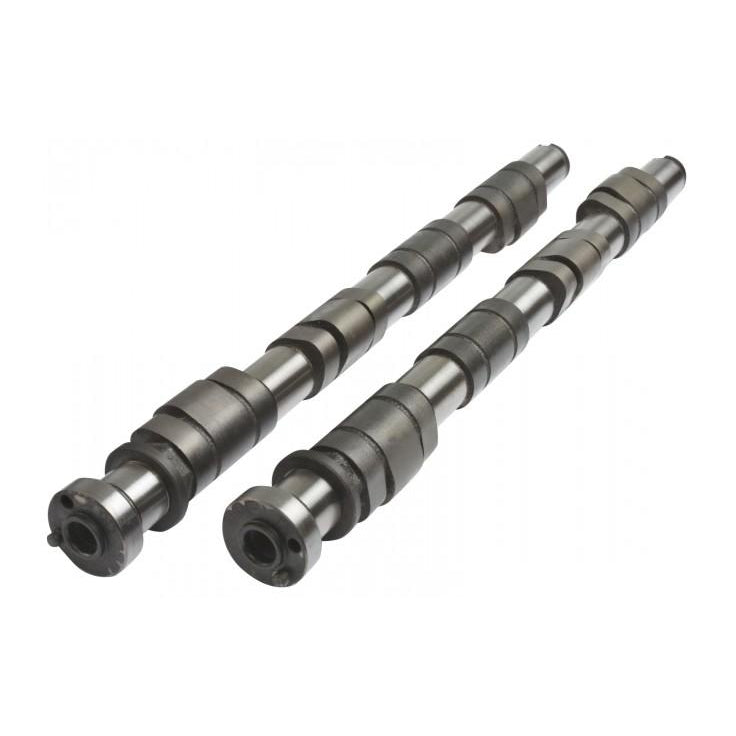

Kelford Cams 184-D Nissan SR16VE / 20VE Performance Cams
Buy now pay later,no extra cost!
Payments from $168.93 with

Note: Please check availability with us before ordering.
324/300 Degrees advertised duration, 12.00mm/11.90mm lift.
Additional Information
Nissan N1 main lobe with 20V spec side lobes Primary lobe specification is 252/248 Degrees advertised duration, 10.20mm/8.30mm lift.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR16/20VE | 184-D | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.40mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 7.70mm | Exhaust: | 7.84mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.90mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 324 | Exhaust: | 300 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 255 | Exhaust: | 252 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 25.5 BTDC | EVO: | 50 BBDC | ||
| IVC: | 49.5 ABDC | EVC: | 22 ATDC | ||||
| Suggested Centre Lines: | Intake: | 102 | Exhaust: | 104 | |||
| VALVE | Lift @ TDC | Intake: | 3.70mm | Exhaust: | 2.80 | ||
