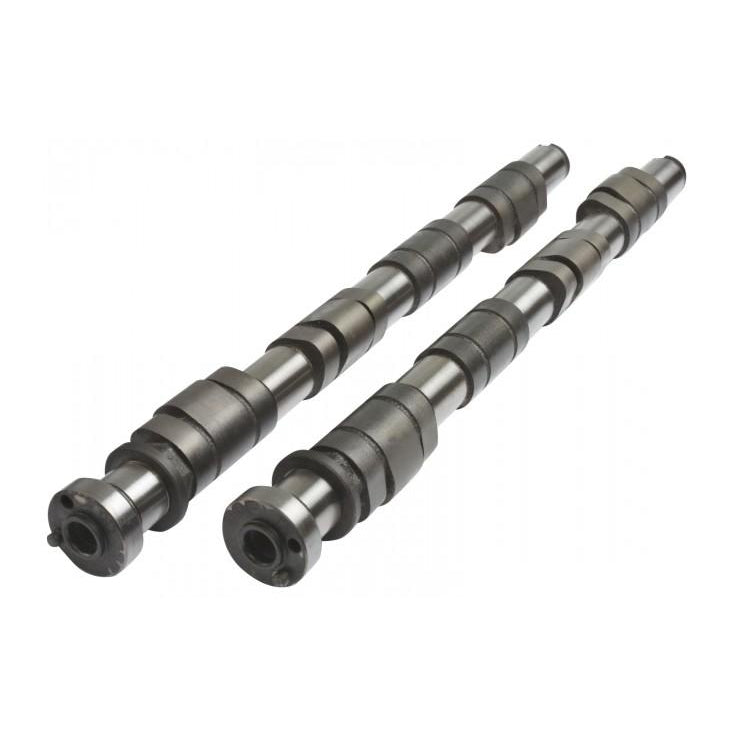

Kelford Cams 184-C4 Nissan SR16VE / 20VE Performance Cams
Buy now pay later,no extra cost!
Payments from $168.93 with

Note: Please check availability with us before ordering.
314/312 Degrees advertised duration, 12.50mm/11.80mm lift.
Additional Information
SR20VE cams to suit track and drag racing cars. Large duration low lobes to enhance midrange transition onto the high lobes. Primary lobe specification is 260/252 Degrees advertised duration, 10.20mm/10.20mm lift.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR16/20VE | 184-C4 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.40mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 8.01mm | Exhaust: | 7.78mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 11.80mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 314 | Exhaust: | 312 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 266 | Exhaust: | 258 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 32 BTDC | EVO: | 47 BBDC | ||
| IVC: | 54 ABDC | EVC: | 31 ATDC | ||||
| Suggested Centre Lines: | Intake: | 101 | Exhaust: | 98 | |||
| VALVE | Lift @ TDC | Intake: | 4.67mm | Exhaust: | 3.94 | ||
