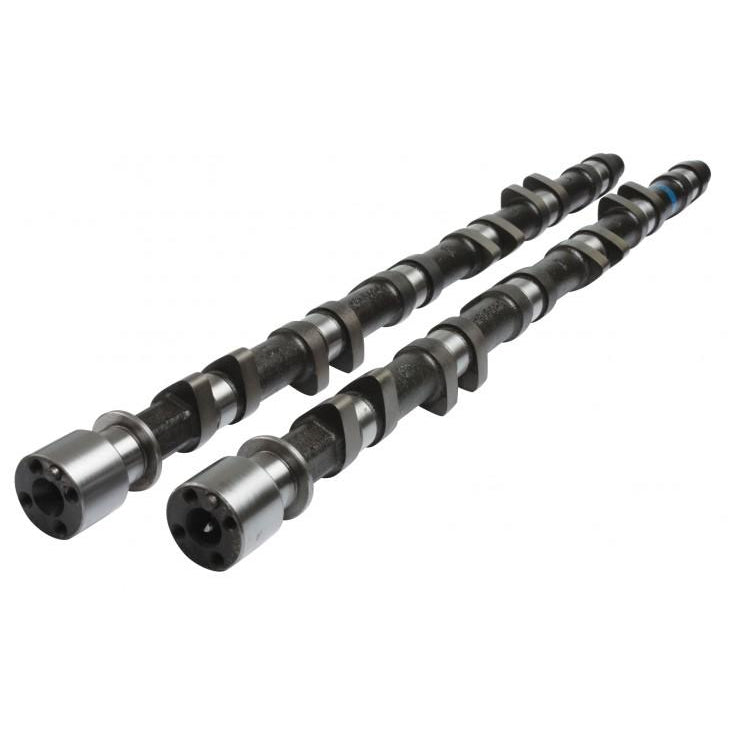

Kelford Cams 184-C Nissan SR16VE / 20VE Performance Cams

$1,689.35 NZD
SKU KC184-C
Buy now pay later,no extra cost!

Payments from $168.93 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

314/312 Degrees advertised duration, 12.50mm/11.80mm lift.

Additional Information

SR20VE Racing cams to suit well modified, high compression motors. Ideal for strokers and IR manifolds. Primary lobe specification is 252/248 Degrees advertised duration, 10.20mm8.30mm lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-C
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.40mm Set COLD at the CAM

Cam Lift:   Intake: 8.01mm Exhaust: 7.78mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 12.50mm Exhaust: 11.80mm
Advertised Duration @ 0.10mm Intake: 314 Exhaust: 312
Duration @ 1.00mm VALVE LIFT Intake: 266 Exhaust: 258
Timing @ 1.00mm VALVE LIFT IVO: 29 BTDC EVO: 49 BBDC
    IVC: 57 ABDC EVC: 29 ATDC
Suggested Centre Lines:   Intake: 104 Exhaust: 100
VALVE Lift @ TDC Intake: 4.24mm Exhaust: 3.70
