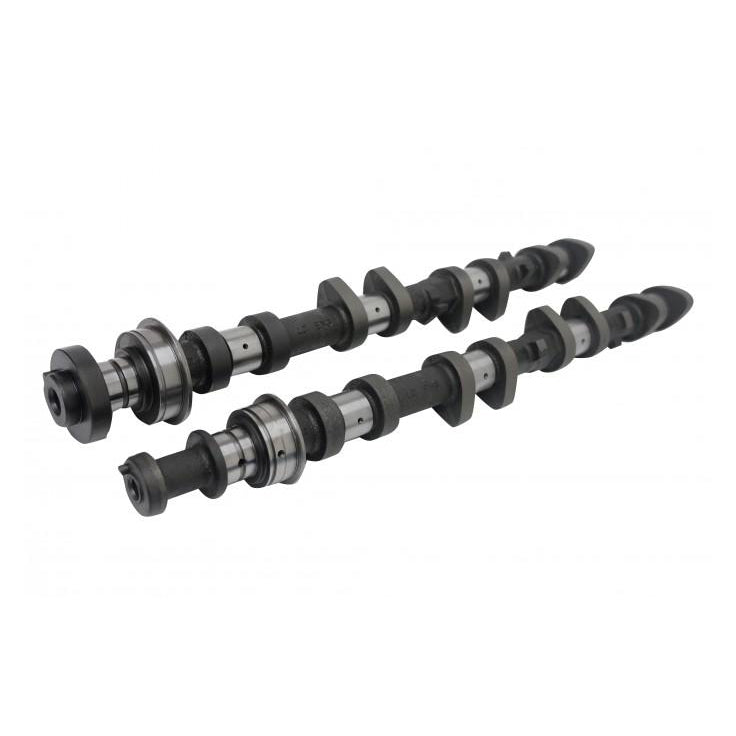

Kelford Cams 180-E Toyota 3RZ Performance Cam Set

$1,631.85 NZD
SKU KC180-E
Buy now pay later,no extra cost!

Payments from $163.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

288/306 Degrees advertised duration. 11.55mm/11.60mm lift.

Additional Information

Drag racing cams to suit high boost race engine using alcohol. These cams must use shimless buckets.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-E
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.80mm Exhaust: 11.85mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.55mm Exhaust: 11.60mm
Advertised Duration @ 0.10mm Intake: 288 Exhaust: 306
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 263
Timing @ 1.00mm VALVE LIFT IVO: 13 BTDC EVO: 69.5 BBDC
    IVC: 57 ABDC EVC: 13.5 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.49mm Exhaust: 2.49
