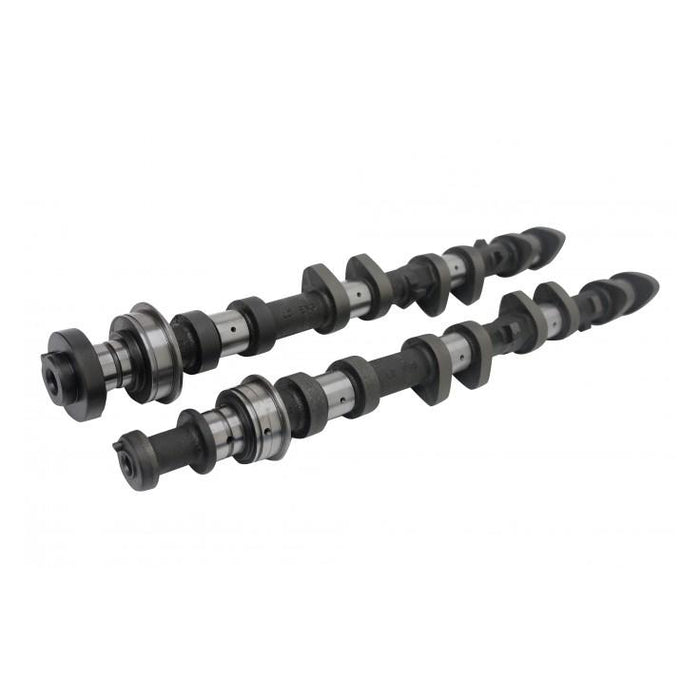

Kelford Cams 180-C Toyota 3RZ Performance Cam Set

$1,631.85 NZD
SKU KC180-C
Buy now pay later,no extra cost!

Payments from $163.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

290/290 Degrees advertised duration. 10.60mm/10.20mm lift.

Additional Information

Drag racing cams to suit top end, high HP Turbocharged 3RZ-FE engines.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.85mm Exhaust: 10.45mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.60mm Exhaust: 10.20mm
Advertised Duration @ 0.10mm Intake: 290 Exhaust: 290
Duration @ 1.00mm VALVE LIFT Intake: 252 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 16 BTDC EVO: 64 BBDC
    IVC: 56 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 2.67mm Exhaust: 1.96
