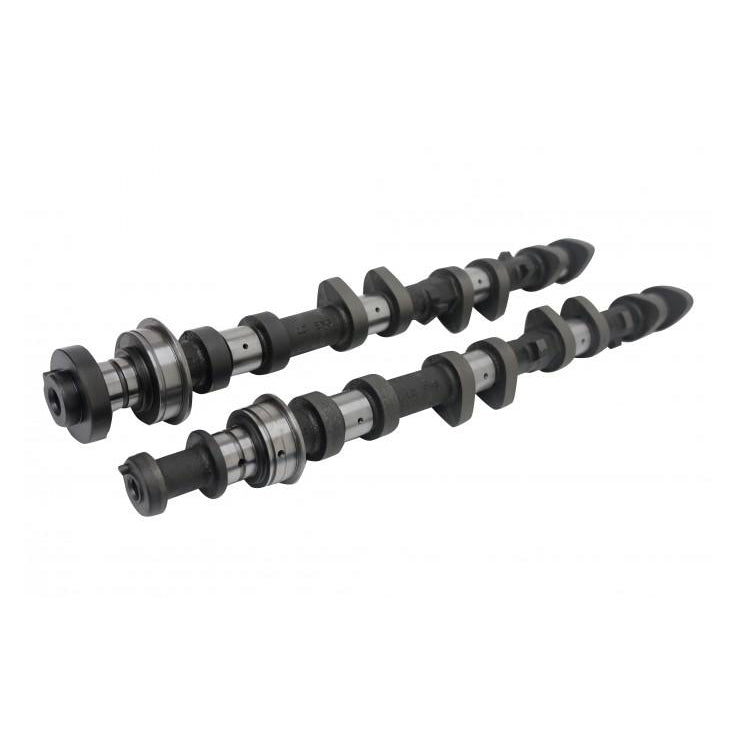

Kelford Cams 180-B Toyota 2RZ/3RZ Tacoma Performance Cams

$1,631.85 NZD
SKU KC180-B
Buy now pay later,no extra cost!

Payments from $163.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/278 Degrees advertised duration. 9.95mm/9.95mm lift.

Additional Information

Stage 2 racing cams for well modified, turbocharged 3RZ-FE engine builds.

 Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.20mm Exhaust: 10.20mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.95mm Exhaust: 9.95mm
Advertised Duration @ 0.10mm Intake: 272 Exhaust: 278
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 240
Timing @ 1.00mm VALVE LIFT IVO: 8 BTDC EVO: 58 BBDC
    IVC: 48 ABDC EVC: 2 ATDC
Suggested Centre Lines:   Intake: 110 Exhaust: 118
VALVE Lift @ TDC Intake: 1.83mm Exhaust: 1.30
