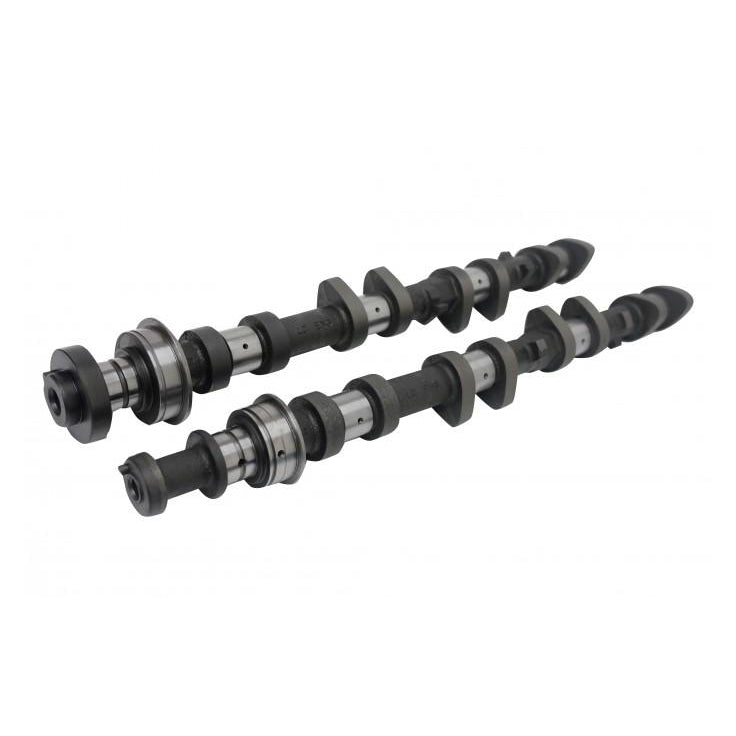

Kelford Cams 180-A Toyota 2RZ/3RZ Tacoma Performance Cams

$1,631.85 NZD
SKU KC180-A
Buy now pay later,no extra cost!

Payments from $163.18 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

264/272 Degrees advertised duration. 9.65mm/9.65mm lift.

Additional Information

Stage 1 high performance cams for mildy tuned, turbocharged 3RZ-FE engine builds.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA 2RZ-3RZ 180-A
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 9.90mm Exhaust: 9.90mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.65mm Exhaust: 9.65mm
Advertised Duration @ 0.10mm Intake: 264 Exhaust: 272
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 7 BTDC EVO: 52 BBDC
    IVC: 41 ABDC EVC: 0 TDC
Suggested Centre Lines:   Intake: 107 Exhaust: 116
VALVE Lift @ TDC Intake: 1.73mm Exhaust: 0.94
