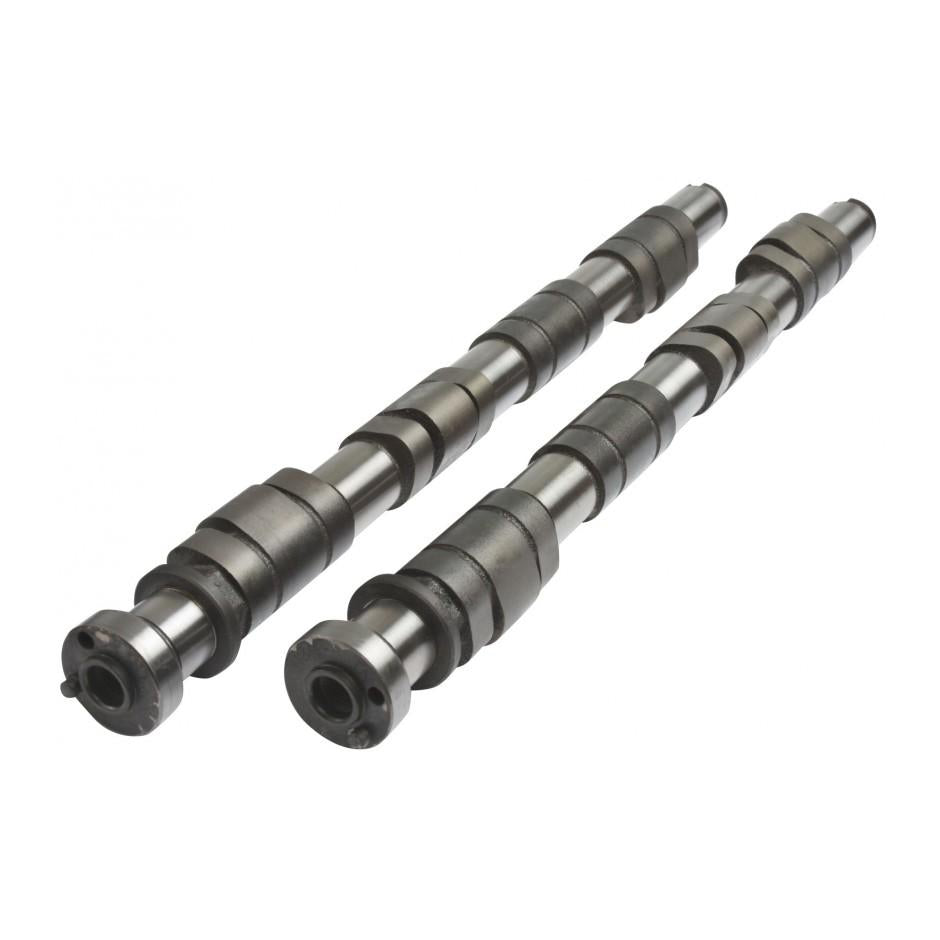

Kelford Cams 184-TK Nissan SR16VE / 20VE Turbo Drag cams
Buy now pay later,no extra cost!
Payments from $180.43 with

Note: Please check availability with us before ordering.
292/303 Degrees advertised duration, 11.40mm/11.40mm lift.
Additional Information:
Nissan SR20VE-T cams for high HP turbocharged engines for drag racing running VVL Delete. Center lobes removed, big profile on side lobes.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | SR16/20VE | 184-T | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.27mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 7.33mm | Exhaust: | 7.40mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 11.40mm | Exhaust: | 11.40mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 292 | Exhaust: | 303 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 250 | Exhaust: | 256 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 17 BTDC | EVO: | 64 BBDC | ||
| IVC: | 53 ABDC | EVC: | 12 ATDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 2.79mm | Exhaust: | 1.74 | ||
