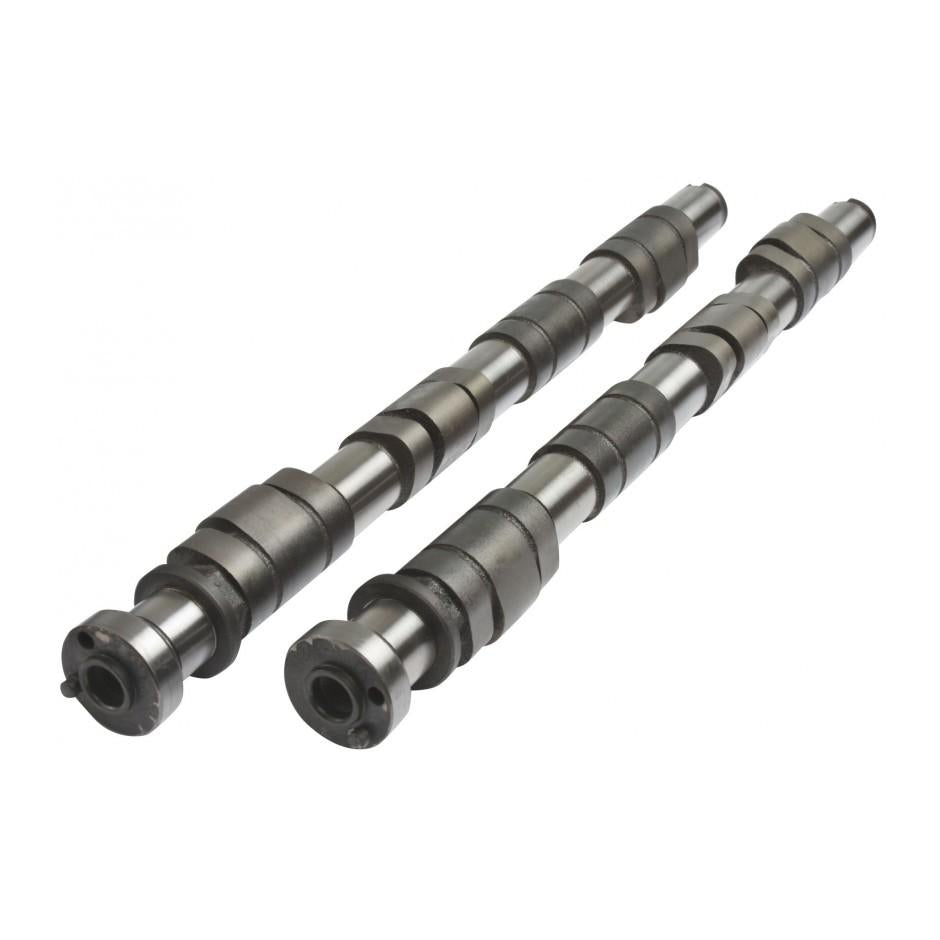

Kelford Cams 184-T Nissan SR16VE / 20VE Turbo Drag cams

$1,689.35 NZD
SKU KC184-T
Buy now pay later,no extra cost!

Payments from $168.93 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

292/303 Degrees advertised duration, 11.40mm/11.40mm lift.

Additional Information:

Nissan SR20VE-T cams for high HP turbocharged engines for drag racing. Primary lobe specification is 260/260 Degrees advertised duration, 10.20mm/10.15mm lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR16/20VE 184-T
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.27mm Set COLD at the CAM

Cam Lift:   Intake: 7.33mm Exhaust: 7.40mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 11.40mm Exhaust: 11.40mm
Advertised Duration @ 0.10mm Intake: 292 Exhaust: 303
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 256
Timing @ 1.00mm VALVE LIFT IVO: 17 BTDC EVO: 64 BBDC
    IVC: 53 ABDC EVC: 12 ATDC
Suggested Centre Lines:   Intake: 108 Exhaust: 116
VALVE Lift @ TDC Intake: 2.79mm Exhaust: 1.74
