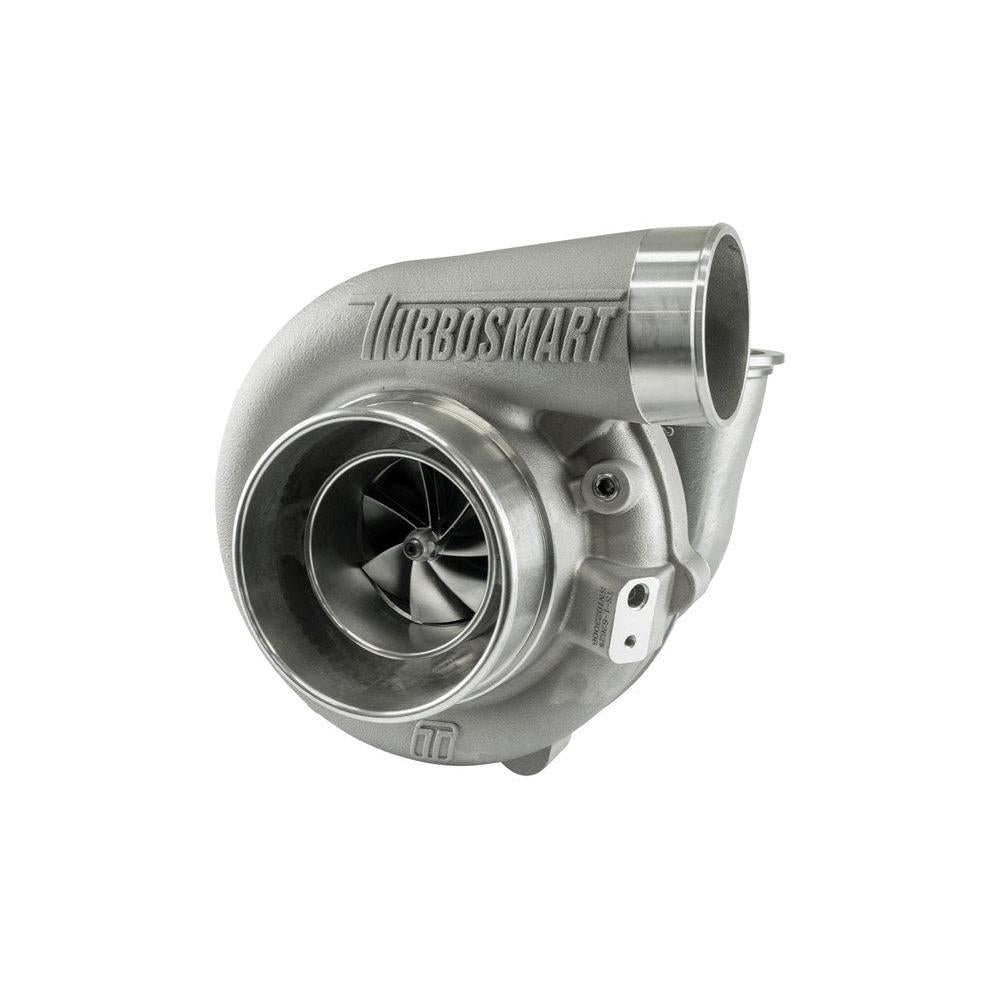

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6262 V-Band 0.82AR Externally Wastegated
by Turbosmart
$3,992.63 NZD
SKU TS-2-6262B-VB082E
Buy now pay later,no extra cost!
Payments from $399.26 with
Enjoy now. Pay Later. Interest free. Learn More
Turbosmart TS-2 Performance Turbocharger is a water and oil-cooled turbocharger engineered for exceptional response, durability, and power. Designed using advanced materials, lightweight turbine housings, and a proprietary dual ceramic bearing system, the TS-2 delivers rapid spool, reduced back pressure, and reliable performance for both street and motorsport applications.
Features
- Water and oil-cooled TS-2 performance turbocharger
- Lightweight 310S stainless steel investment cast turbine housing
- Aggressive 7+7 splitter wheel compressor design
- Lightweight aluminium compressor cover
- T14 Inconel turbine wheel for extreme exhaust gas temperatures
- Proprietary dual ceramic bearing system
- Integrated iron backplate on the centre housing
- CFD-optimised housings for improved airflow and efficiency
- VSR speed balanced for smooth, reliable operation
- Available with V-Band, T3, and T4 turbine inlet options
- Available in internal and external wastegate configurations
- Reverse rotation options available on selected models
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 62mm
- Turbine Inlet: V-Band (2.25")
- Turbine Exducer: 62mm
- Turbine A/R: 0.82
- Turbine Outlet: V-Band (3.00")
- Weight: 6.06kg (13.3lb)
Supplied With
- 1 x Turbosmart TS-2 Performance Turbocharger
- 1 x Turbine outlet weld flange
- 1 x Turbine outlet V-Band clamp
- 1 x Oil drain gasket
