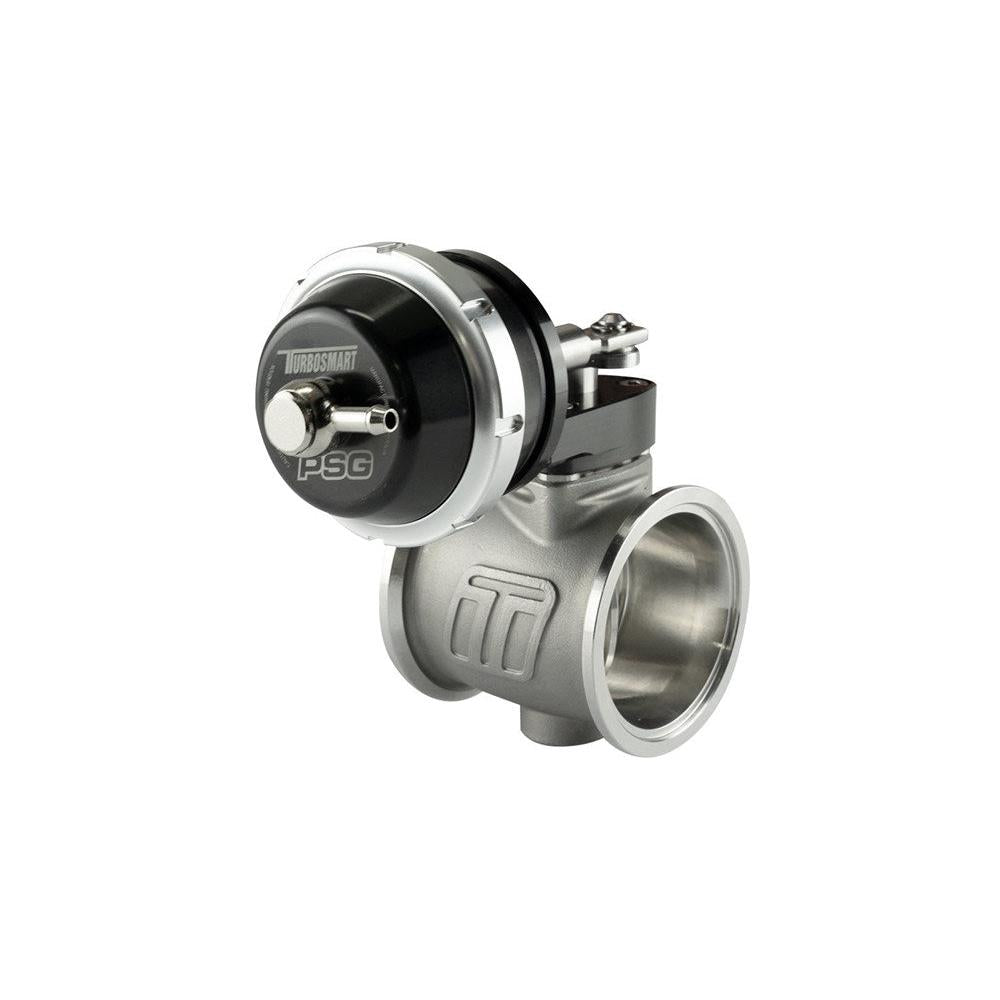

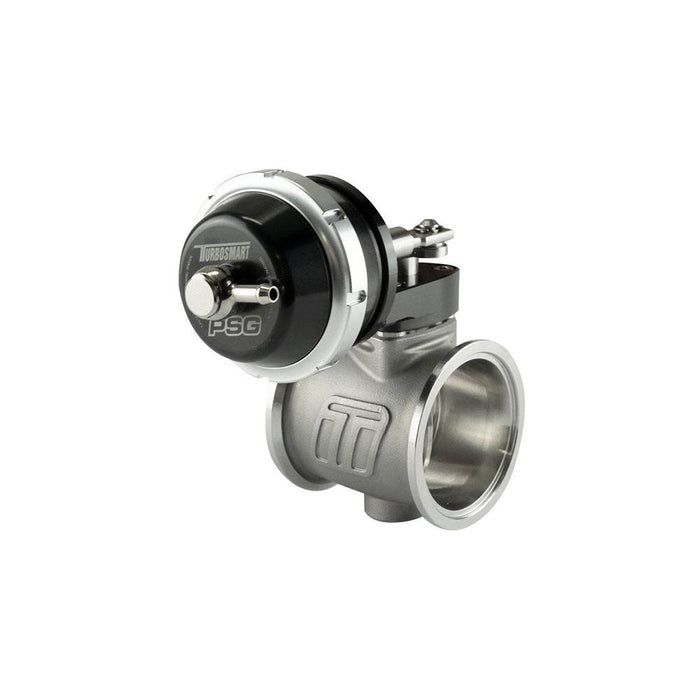

Turbosmart PSG50V Pneumatic StraightGate (Vacuum) 6 InHg Black
Buy now pay later,no extra cost!
Payments from $115.25 with
Turbosmart StraightGate50 Vacuum-Based Pneumatic External Wastegate
The Turbosmart StraightGate50 Vacuum-Based Pneumatic External Wastegate is a high-flow, butterfly-style external wastegate engineered to deliver exceptional boost control across the entire operating range. Its innovative 50mm zero-offset butterfly valve provides almost linear control and industry-leading flow, while the vacuum-based GenV actuator supports advanced boost strategies, including cold-start emissions control and compatibility with factory vacuum-operated boost control systems. The self-balancing valve design reduces actuator effort under high exhaust drive pressures, providing a wider tuning window and consistent boost regulation for high-performance street and motorsport applications.
Features
- 50mm (1.97") zero-offset butterfly valve
- High-flow design delivering 383.9 CFM (10.87m³/min)
- Vacuum-based GenV pneumatic actuator
- Self-balancing valve for wider boost control range
- Supports advanced vacuum-based boost control strategies
- Compatible with factory vacuum-operated boost control systems
- Suitable for single or twin-port control
- Base spring options from 6 psi to 42 psi
- 630 stainless steel butterfly valve and shaft
- 347 stainless steel main body
- Heat-treated 431 stainless steel V-band clamps
- 6262 T6 anodised aluminium actuator and bracket
- Turbosmart locking collar ring for quick spring changes
- N60 stainless steel linkage and control arm
- Ideal for high-performance street, drag racing, and motorsport applications
