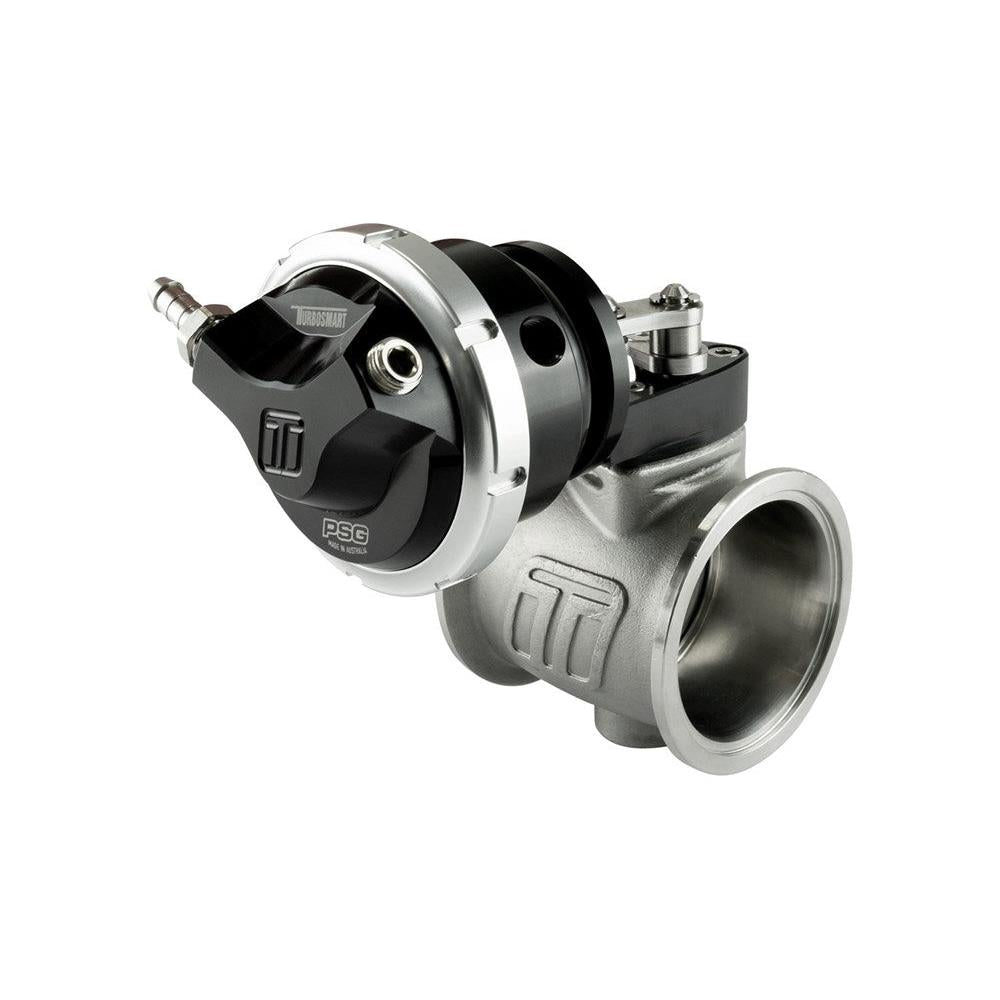

Turbosmart PSG50 Pneumatic Straight Gate 6psi Black
by Turbosmart
$1,152.53 NZD
SKU TS-0565-1762
Buy now pay later,no extra cost!
Payments from $115.25 with
Enjoy now. Pay Later. Interest free. Learn More
The Turbosmart StraightGate50 Pneumatic External Wastegate is the world's highest-flowing external wastegate, engineered to deliver exceptional exhaust flow and precise boost control for high-performance and motorsport applications. Featuring a 50mm zero-offset butterfly valve, the StraightGate50 provides almost linear control and a significantly wider tuning window than conventional poppet-style wastegates. Its self-balancing valve design minimises the effect of exhaust backpressure, allowing stable boost control even under extreme conditions. Supplied with a 6psi base spring and a GenV twin-port actuator, it supports both single and twin-port boost control strategies for maximum tuning flexibility.
Features
- 50mm (1.97") zero-offset butterfly valve
- High-flow design delivering 383.9 CFM (10.87m³/min)
- Pneumatic boost-based operation
- Self-balancing butterfly valve for consistent boost control
- Wider tuning window with over five times the base spring pressure
- Supplied with a 6psi base spring
- GenV actuator supports single and twin-port boost control
- Stainless steel (630) butterfly valve and shaft
- Stainless steel (347) main body
- Heat-treated 431 stainless steel V-band clamps
- 6262-T6 anodised aluminium actuator and mounting bracket
- Turbosmart locking collar system for quick spring changes
- Base spring options from 6psi to 42psi
- Stainless steel linkages and control arm
Benefits
- Exceptional exhaust flow compared to conventional poppet-style wastegates
- Highly accurate and stable boost control across the operating range
- Reduced sensitivity to exhaust backpressure
- Broad tuning flexibility for street, drag racing, and motorsport applications
- Durable construction designed for extreme operating conditions
