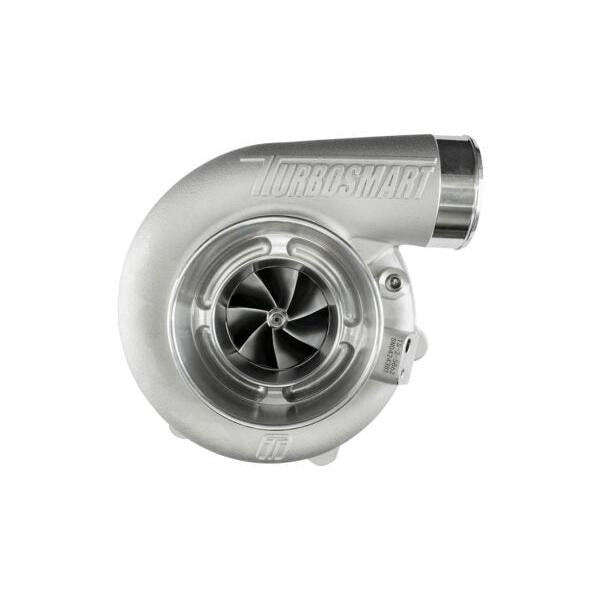

TS-2 Turbocharger (Water Cooled) 7170 (Kompact) T4 0.96AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $491.36 with
The Turbosmart TS-2 7170 Turbocharger is engineered to be smaller, lighter, and faster, combining advanced materials, modern aerodynamics, and precision manufacturing to deliver exceptional performance for motorsport and high-performance street applications. Its oil and water-cooled design provides rapid spool-up, excellent thermal management, and outstanding durability under demanding conditions.
Every TS-2 turbocharger is supplied with everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, plus water feed and return fittings. Featuring a proprietary dual ceramic bearing system and lightweight investment-cast turbine housing, the TS-2 delivers outstanding transient response, reduced back pressure, and reliable high-horsepower performance.
Features
- Oil and water-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes weld flanges, V-band clamps, gaskets, oil feed/drain fittings, and water feed/return fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 71 mm
- Turbine inlet: T4 flange
- Turbine exducer: 70 mm
- Turbine A/R: 0.96
- Turbine outlet: 3.00" V-band
- Weight: 6.06 kg (13.3 lb)
- Horsepower rating: 880-1040 HP
