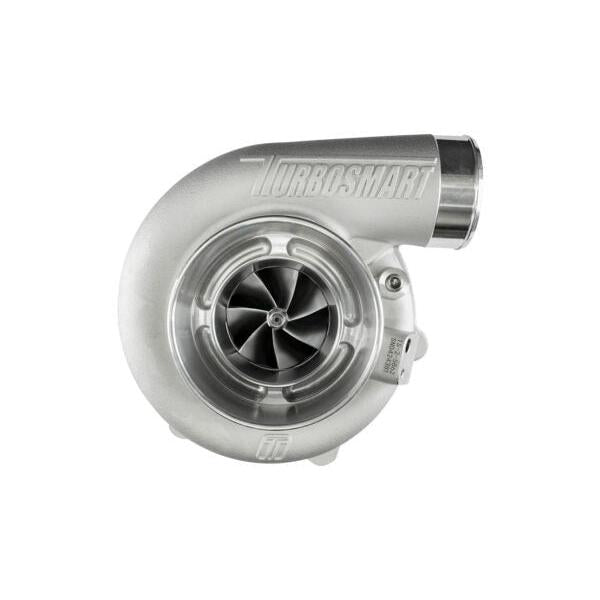

TS-2 Turbocharger (Water Cooled) 6870 (Kompact) V-Band Reverse Rotation 1.07AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $474.26 with
The Turbosmart TS-2 6870 Turbocharger is designed to be smaller, lighter, and faster, delivering exceptional response, efficiency, and high-horsepower performance for motorsport and high-performance street applications. Its oil and water-cooled design combines advanced materials with precision engineering to provide rapid spool-up, excellent thermal management, and long-term reliability.
Every TS-2 turbocharger is supplied with everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, plus water feed and return fittings. Featuring a proprietary dual ceramic bearing system and lightweight investment-cast turbine housing, it delivers reduced back pressure and outstanding performance throughout the rev range.
Features
- Oil and water-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes weld flanges, V-band clamps, gaskets, oil feed/drain fittings, and water feed/return fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 68 mm
- Turbine inlet: 2.25" V-band
- Turbine exducer: 70 mm
- Turbine A/R: 1.07
- Turbine outlet: 3.00" V-band
- Weight: 6.06 kg (13.3 lb)
- Horsepower rating: 850-990 HP
