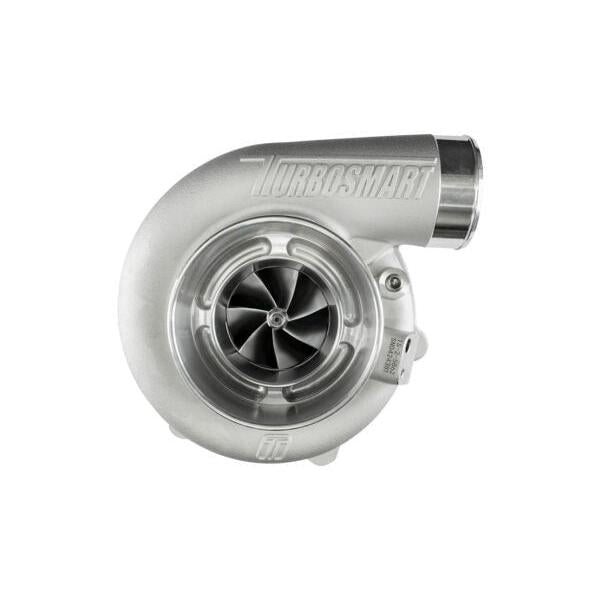

TS-2 Turbocharger (Water Cooled) 6870 (Kompact) T4 Divided 0.84AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $482.53 with
TS-2 Turbocharger (Water Cooled) 6870 T4 Divided 0.84 A/R Externally Wastegated
The Turbosmart TS-2 6870 Turbocharger is a high-performance oil and water-cooled turbo designed for demanding street and motorsport applications. Featuring a 68mm compressor inducer, 70mm turbine exducer, T4 Divided flange, and 0.84 A/R turbine housing, it delivers rapid spool, exceptional transient response, and reliable power output from 850–990HP. Built with lightweight stainless steel turbine housings, billet aluminium compressor covers, a proprietary dual ceramic bearing system, and a high-temperature T14 Inconel turbine wheel, it offers outstanding durability and performance under extreme conditions. Installation hardware, including weld flanges, V-band clamps, gaskets, and oil and water fittings, is included.
Features
- Oil and water-cooled TS-2 turbocharger
- 68mm compressor inducer and 70mm turbine exducer
- T4 Divided turbine inlet with 0.84 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for maximum airflow and response
- VSR speed balanced for smooth operation
- Integrated iron backplate centre housing
- Installation fittings, flanges, clamps, and gaskets included
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 68mm
- Turbine Inlet: T4 Divided Flange
- Turbine Exducer: 70mm
- Turbine A/R: 0.84
- Turbine Outlet: 3.00" V-Band
- Cooling: Oil and Water Cooled
- Weight: 6.06kg (13.3lbs)
- Horsepower Rating: 850-990HP
