TS-2 Turbocharger (Water Cooled) 6870 (Kompact) T4 0.96AR Externally Wastegated

$4,825.38 NZD
SKU TS-2-6870B-T4096E
Buy now pay later,no extra cost!

Payments from $482.53 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

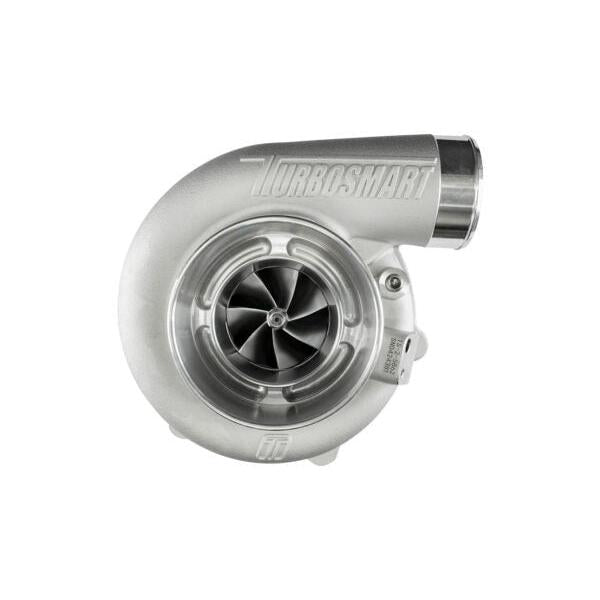

TS-2 Turbocharger (Water Cooled) 6870 T4 0.96 A/R Externally Wastegated

The Turbosmart TS-2 6870 is a premium oil and water-cooled turbocharger engineered for exceptional transient response, fast spool, and reliable high-performance operation. Featuring a lightweight 310S stainless steel investment-cast turbine housing, 7+7 billet aluminium compressor wheel, and proprietary dual ceramic bearing system, it delivers outstanding efficiency and power for demanding street and motorsport applications.

Each TS-2 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings.

Features

  • Oil and water-cooled TS-2 turbocharger
  • Proprietary dual ceramic bearing system for rapid spool and response
  • 7+7 billet aluminium splitter compressor wheel
  • Lightweight 310S stainless steel investment-cast turbine housing
  • CFD-optimised turbine and compressor housings
  • T14 Inconel turbine wheel for extreme exhaust temperatures
  • Lightweight aluminium compressor cover
  • VSR speed balanced for smooth, reliable operation
  • Integrated iron backplate on centre housing
  • Complete installation hardware included

Specifications

  • Compressor Inlet: 4.00" (101.6mm)
  • Compressor Inducer: 68mm
  • Turbine Inlet: T4 Flange
  • Turbine Exducer: 70mm
  • Turbine A/R: 0.96
  • Turbine Outlet: V-Band (3.00")
  • Weight: 6.06kg (13.3lbs)
  • Horsepower Rating: 850-990HP
