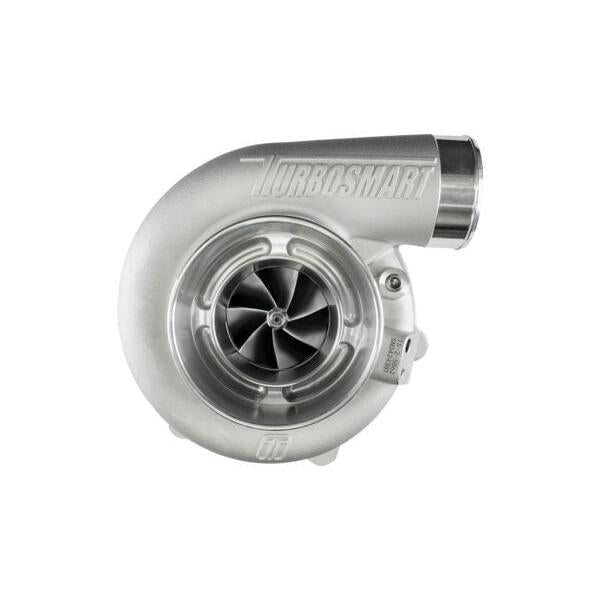

TS-2 Turbocharger (Water Cooled) 6870 (Kompact) T3 1.10AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $486.94 with

TS-2 Turbocharger (Water Cooled) 6870 T3 1.10 A/R Externally Wastegated
The Turbosmart TS-2 6870 is a premium oil and water-cooled turbocharger engineered for rapid spool, outstanding transient response, and dependable high-performance operation. Designed using advanced materials and CFD-optimised aerodynamics, it features a lightweight 310S stainless steel investment-cast turbine housing, a 7+7 billet aluminium compressor wheel, and a proprietary dual ceramic bearing system to maximise efficiency and power for street and motorsport applications.
Each TS-2 turbocharger is supplied with everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings.
Features
- Oil and water-cooled TS-2 turbocharger
- Proprietary dual ceramic bearing system for rapid spool and response
- 7+7 billet aluminium splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- CFD-optimised turbine and compressor housings
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Lightweight aluminium compressor cover
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate on centre housing
- Complete installation hardware included
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 68mm
- Turbine Inlet: T3 Flange
- Turbine Exducer: 70mm
- Turbine A/R: 1.10
- Turbine Outlet: V-Band (3.00")
- Weight: 6.06kg (13.3lbs)
- Horsepower Rating: 850-990HP
