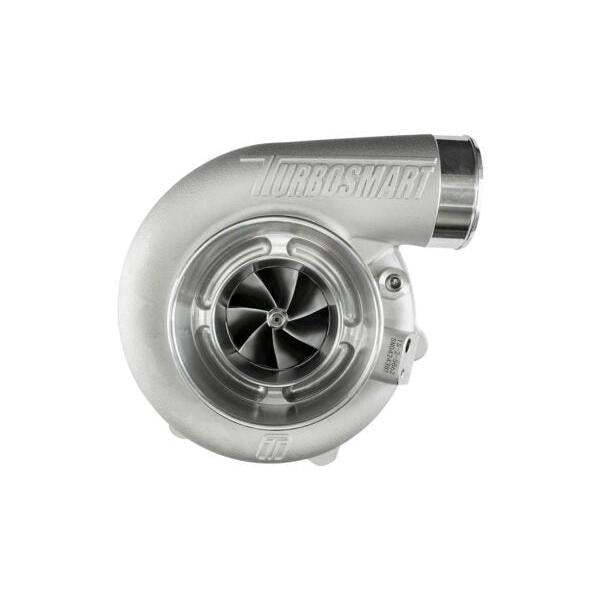

Turbosmart TS-2 Turbocharger 6466 V-Band 1.00 A/R Externally Wastegated
The Turbosmart TS-2 6466 Turbocharger is a high-performance oil and water-cooled turbo engineered for fast spool, outstanding transient response, and reliable power delivery in demanding street and motorsport applications. Featuring a 64mm compressor inducer, 66mm turbine exducer, 2.25-inch V-Band turbine inlet, and 1.00 A/R turbine housing, it is capable of supporting 750–930HP. Built with a lightweight 310S stainless steel turbine housing, billet aluminium compressor cover, proprietary dual ceramic bearing system, and T14 Inconel turbine wheel, it delivers exceptional durability and performance. Installation hardware, including oil and water fittings, weld flanges, V-band clamps, and gaskets, is included.
Features
- Oil and water-cooled TS-2 turbocharger
- 64mm compressor inducer and 66mm turbine exducer
- 2.25-inch V-Band turbine inlet with 1.00 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for improved airflow and response
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes oil and water fittings, V-band clamps, weld flanges, and gaskets
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 64mm
- Turbine Inlet: 2.25" V-Band
- Turbine Exducer: 66mm
- Turbine A/R: 1.00
- Turbine Outlet: 3.00" V-Band
- Cooling: Oil and Water Cooled
- Weight: 6.06kg (13.3lbs)
- Horsepower Rating: 750-930HP
