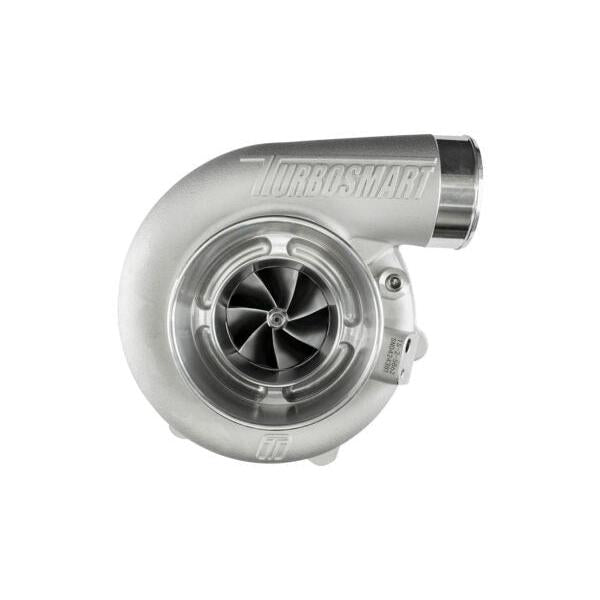

TS-2 Turbocharger (Water Cooled) 5862 V-Band 0.82AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $399.26 with
The Turbosmart TS-2 5862 Turbocharger is a compact, high-performance oil and water-cooled turbocharger engineered for rapid spool, excellent transient response, and reliable power delivery. Designed with a 58mm compressor inducer, 62mm turbine exducer, V-Band 2.25-inch turbine inlet, and 0.82 A/R turbine housing, it is ideal for high-performance street and motorsport applications producing 600–750HP. Built with lightweight 310S stainless steel turbine housings, billet aluminium compressor covers, a proprietary dual ceramic bearing system, and a T14 Inconel turbine wheel, the TS-2 delivers exceptional durability, efficiency, and response. Each turbocharger includes weld flanges, V-band clamps, gaskets, oil feed and drain fittings, plus water feed and return fittings for straightforward installation.
Features
- Oil and water-cooled TS-2 turbocharger
- Externally wastegated design
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor aerodynamics
- Proprietary dual ceramic bearing system
- T14 Inconel turbine wheel for extreme exhaust temperatures
- CFD-optimised turbine housing for maximum flow and efficiency
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes weld flanges, V-band clamps, gaskets, oil feed and drain fittings, plus water feed and return fittings
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 58mm
- Turbine Inlet: V-Band (2.25")
- Turbine Exducer: 62mm
- Turbine A/R: 0.82
- Turbine Outlet: V-Band (3.00")
- Cooling: Oil and Water Cooled
- Wastegate: External
- Weight: 6.06kg (13.3lbs)
- Horsepower Rating: 600–750HP
