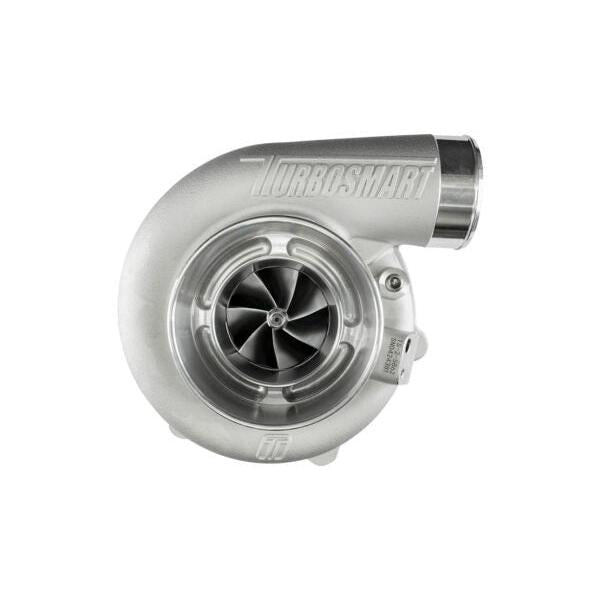

TS-2 Turbocharger (Water Cooled) 5862 T4 0.82AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $383.82 with
The Turbosmart TS-2 5862 Turbocharger is engineered to be smaller, lighter, and faster, combining advanced materials, precision engineering, and modern manufacturing techniques to deliver exceptional performance for motorsport and high-performance street applications.
Every TS-2 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, plus water feed and return fittings. Featuring an oil and water-cooled design, the TS-2 Series uses lightweight investment-cast turbine housings, a proprietary dual ceramic bearing system, and an advanced shaft assembly to deliver exceptional transient response, reduced back pressure, and outstanding power across the rev range.
Features
- Oil and water-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes weld flanges, V-band clamps, gaskets, oil feed/drain fittings, and water feed/return fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 58 mm
- Turbine inlet: T4 flange
- Turbine exducer: 62 mm
- Turbine A/R: 0.82
- Turbine outlet: 3.00" V-band
- Weight: 6.06 kg (13.3 lb)
- Horsepower rating: 600-750 HP
