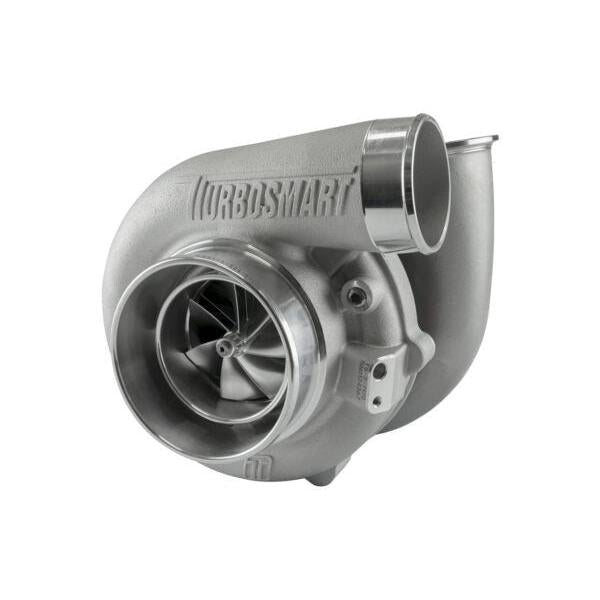

TS-2 Performance Turbocharger (Water Cooled) 7170 (Kompact) V-Band 1.07AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $521.69 with
The Turbosmart TS-2 7170 Turbocharger is engineered to be smaller, lighter, and faster, combining advanced materials, precision engineering, and modern manufacturing techniques to deliver exceptional performance for motorsport and high-performance street applications.
Every TS-2 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings. Featuring both water and oil cooling, the TS-2 Series uses lightweight investment-cast turbine housings, a proprietary dual ceramic bearing system, and an advanced shaft assembly to deliver outstanding transient response, reduced back pressure, and impressive power across the rev range.
Features
- Water and oil-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 2618 aluminium billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- 713C Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes installation hardware, weld flanges, V-band clamps, gaskets, and oil/water fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 71 mm
- Turbine inlet: 2.25" V-band
- Turbine exducer: 70 mm
- Turbine A/R: 1.07
- Turbine outlet: 3.00" V-band
- Weight: 6.06 kg (13.3 lb)
- Horsepower rating: 880-1040 HP
