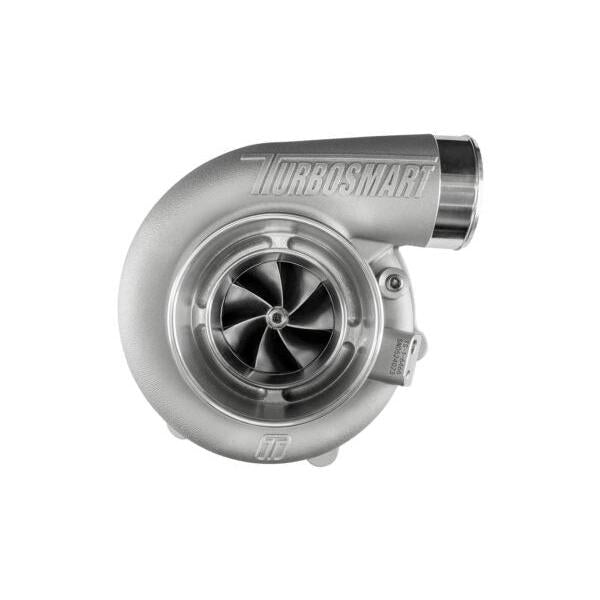

TS-1 Turbocharger 8280 V-Band 0.96AR Externally Wastegated
by Turbosmart
$5,834.58 NZD
SKU TS-1-8280C-VB096E
Buy now pay later,no extra cost!
Payments from $583.45 with
Enjoy now. Pay Later. Interest free. Learn More
The Turbosmart TS-1 8280 Turbocharger is designed for extreme horsepower applications, combining lightweight construction with advanced aerodynamics for rapid spool-up and outstanding top-end performance. Featuring an oil-cooled design, proprietary dual ceramic bearing system, and lightweight investment-cast turbine housing, it delivers exceptional response, durability, and efficiency for motorsport and high-performance builds.
Each TS-1 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings. Engineered to reduce back pressure while maximising airflow, it provides reliable power across a wide operating range.
Features
- Oil-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed/drain fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 82 mm
- Turbine inlet: 3.00" V-band
- Turbine exducer: 80 mm
- Turbine A/R: 0.96
- Turbine outlet: 3.50" V-band
- Weight: 9.63 kg (21.23 lb)
- Horsepower rating: 1300-1450 HP
