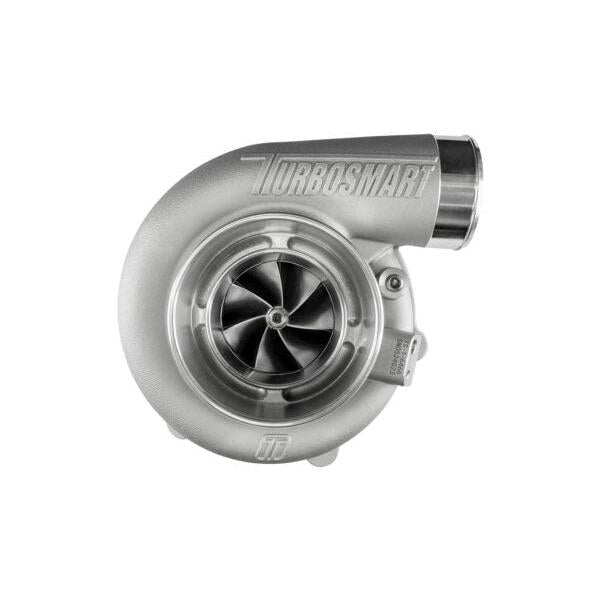

TS-1 Turbocharger 8280 T4 1.24AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $559.74 with
The Turbosmart TS-1 8280 Turbocharger is engineered for extreme horsepower applications, combining lightweight construction, advanced aerodynamics, and an oil-cooled design to deliver rapid spool-up, exceptional response, and outstanding top-end performance. Designed for motorsport and high-performance builds, it offers reduced back pressure, excellent durability, and consistent power delivery.
Each TS-1 turbocharger includes everything needed for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings. Its proprietary dual ceramic bearing system and lightweight investment-cast turbine housing maximise efficiency while maintaining reliability under demanding conditions.
Features
- Oil-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed/drain fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 82 mm
- Turbine inlet: T4 flange
- Turbine exducer: 80 mm
- Turbine A/R: 1.24
- Turbine outlet: 3.50" V-band
- Weight: 9.63 kg (21.23 lb)
- Horsepower rating: 1300-1450 HP
