TS-1 Turbocharger 7880 V-Band 1.24AR Externally Wastegated
by Turbosmart
$5,834.58 NZD
SKU TS-1-7880C-VB124E
Buy now pay later,no extra cost!
Payments from $583.45 with
Enjoy now. Pay Later. Interest free. Learn More

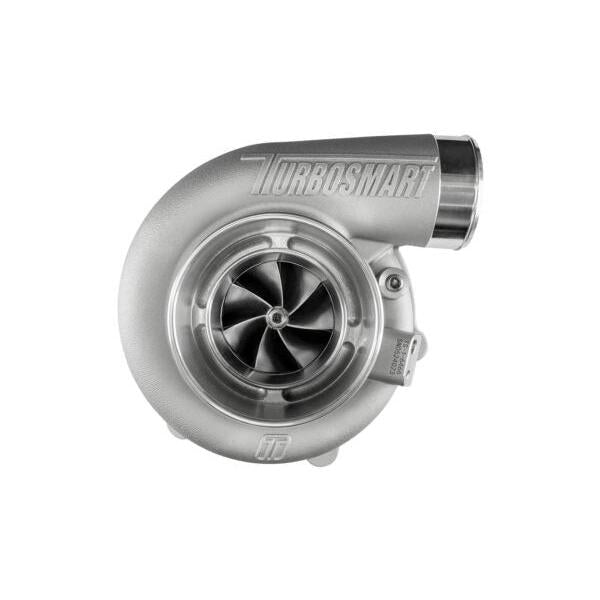

TS-1 Turbocharger (Oil Cooled) 7880 V-Band 1.24 A/R Externally Wastegated
The Turbosmart TS-1 7880 is a high-performance oil-cooled turbocharger engineered for rapid spool, exceptional transient response, and outstanding reliability. Built with advanced materials and CFD-optimised aerodynamics, it combines a lightweight 310S stainless steel investment-cast turbine housing, 7+7 billet aluminium compressor wheel, and a proprietary dual ceramic bearing system to deliver maximum performance for demanding street and motorsport applications.
Each TS-1 turbocharger is supplied with everything required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.
Features
- Oil-cooled TS-1 turbocharger
- Proprietary dual ceramic bearing system for rapid spool and response
- 7+7 billet aluminium splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- CFD-optimised turbine and compressor housings
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Lightweight aluminium compressor cover
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate on centre housing
- Complete installation hardware included
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 78mm
- Turbine Inlet: V-Band (3.00")
- Turbine Exducer: 80mm
- Turbine A/R: 1.24
- Turbine Outlet: V-Band (3.50")
- Weight: 9.63kg (21.23lbs)
- Horsepower Rating: 1275-1425HP
