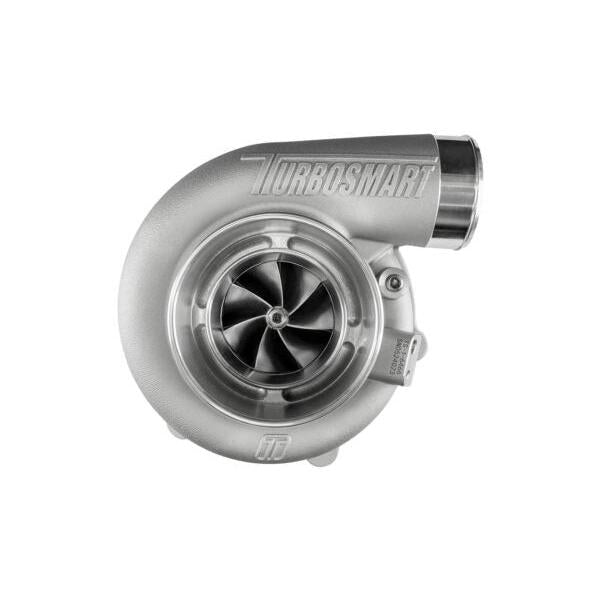

TS-1 Turbocharger 7675 V-Band 1.24AR Externally Wastegated
by Turbosmart
$5,327.21 NZD
SKU TS-1-7675C-VB124E
Buy now pay later,no extra cost!
Payments from $532.72 with
Enjoy now. Pay Later. Interest free. Learn More
The Turbosmart TS-1 7675 is a premium oil-cooled turbocharger engineered to deliver exceptional transient response, rapid spool, and reliable high-performance operation. Built using advanced materials and CFD-optimised aerodynamics, it features a lightweight 310S stainless steel investment-cast turbine housing, a 7+7 billet aluminium compressor wheel, and a proprietary dual ceramic bearing system for outstanding efficiency and durability in demanding street and motorsport applications.
Each TS-1 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings.
Features
- Oil-cooled TS-1 turbocharger
- Proprietary dual ceramic bearing system for rapid spool and response
- 7+7 billet aluminium splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- CFD-optimised turbine and compressor housings
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Lightweight aluminium compressor cover
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate on centre housing
- Complete installation hardware included
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 76mm
- Turbine Inlet: V-Band (3.00")
- Turbine Exducer: 75mm
- Turbine A/R: 1.24
- Turbine Outlet: V-Band (3.50")
- Weight: 9.63kg (20.23lbs)
- Horsepower Rating: 1200-1350HP
