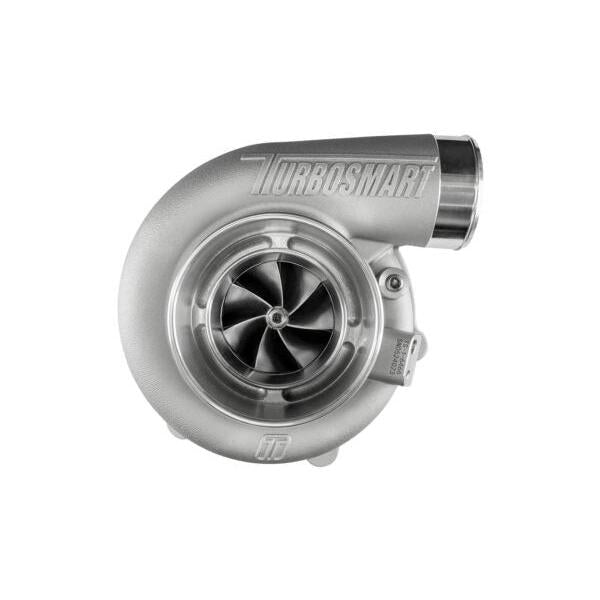

Turbosmart TS-1 Turbocharger 6870 V-Band 0.96 A/R Externally Wastegated
The Turbosmart TS-1 6870 Turbocharger is a high-performance oil-cooled turbocharger designed for fast spool, exceptional transient response, and reliable power delivery in demanding street and motorsport applications. Featuring a 68mm compressor inducer, 70mm turbine exducer, 3.00-inch V-Band turbine inlet, and 0.96 A/R turbine housing, it is capable of supporting 900–1100HP. Constructed with a lightweight 310S stainless steel turbine housing, billet aluminium compressor cover, proprietary dual ceramic bearing system, and T14 Inconel turbine wheel, it delivers excellent durability and efficiency under extreme operating conditions. Installation hardware, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings, is included.
Features
- Oil-cooled TS-1 turbocharger
- 68mm compressor inducer and 70mm turbine exducer
- 3.00-inch V-Band turbine inlet with 0.96 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for improved airflow and response
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 68mm
- Turbine Inlet: 3.00" V-Band
- Turbine Exducer: 70mm
- Turbine A/R: 0.96
- Turbine Outlet: 3.50" V-Band
- Cooling: Oil Cooled
- Weight: 9.63kg (20.23lbs)
- Horsepower Rating: 900-1100HP
