TS-1 Turbocharger 6870 V-Band 0.96AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $491.36 with

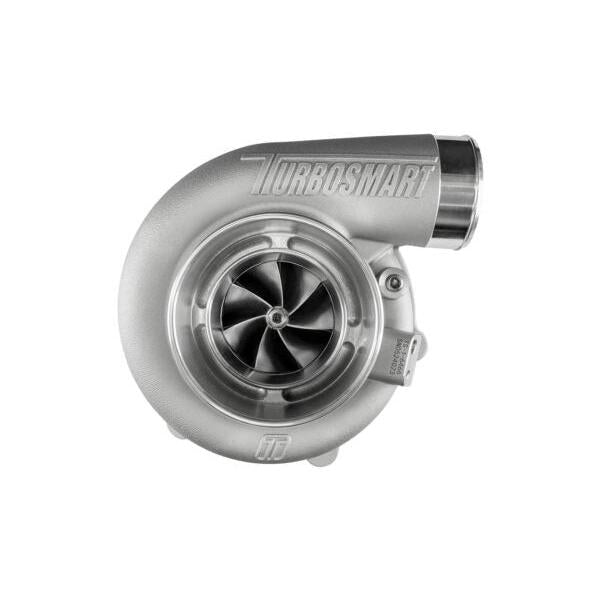

Turbosmart TS-1 Turbocharger 6870 V-Band 0.96 A/R Internally Wastegated
The Turbosmart TS-1 6870 Turbocharger is a high-performance oil-cooled, internally wastegated turbocharger engineered for rapid spool, outstanding transient response, and dependable power delivery. Featuring a 68mm compressor inducer, 70mm turbine exducer, 3.00-inch V-Band turbine inlet, and 0.96 A/R turbine housing, it is designed to support 900–1100HP. Built with a lightweight 310S stainless steel turbine housing, billet aluminium compressor cover, proprietary dual ceramic bearing system, and a T14 Inconel turbine wheel, it offers exceptional durability and efficiency for both performance street and motorsport applications. Each turbocharger includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings for installation.
Features
- Oil-cooled TS-1 turbocharger
- Internally wastegated design
- 68mm compressor inducer and 70mm turbine exducer
- 3.00-inch V-Band turbine inlet with 0.96 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for improved airflow and response
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 68mm
- Turbine Inlet: 3.00" V-Band
- Turbine Exducer: 70mm
- Turbine A/R: 0.96
- Turbine Outlet: 3.50" V-Band
- Cooling: Oil Cooled
- Wastegate: Internal
- Weight: 9.63kg (20.23lbs)
- Horsepower Rating: 900–1100HP
