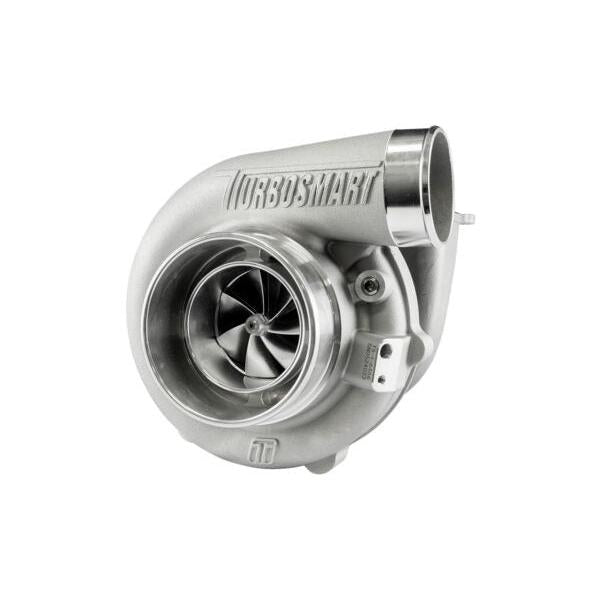

Turbosmart TS-1 Turbocharger 6870 V-Band 1.07 A/R Externally Wastegated
The Turbosmart TS-1 6870 Turbocharger is a premium oil-cooled, externally wastegated turbocharger designed for high-performance street and motorsport applications. Featuring a 68mm compressor inducer, 70mm turbine exducer, 2.25-inch V-Band turbine inlet, and 1.07 A/R turbine housing, it delivers exceptional spool response and supports 850–990HP. Built with a lightweight 310S stainless steel turbine housing, billet aluminium compressor cover, proprietary dual ceramic bearing system, and a T14 Inconel turbine wheel, it offers outstanding durability, efficiency, and high-power reliability. Each turbocharger includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings for hassle-free installation.
Features
- Oil-cooled TS-1 turbocharger
- Externally wastegated design
- 68mm compressor inducer and 70mm turbine exducer
- 2.25-inch V-Band turbine inlet with 1.07 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for improved airflow and response
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 68mm
- Turbine Inlet: 2.25" V-Band
- Turbine Exducer: 70mm
- Turbine A/R: 1.07
- Turbine Outlet: 3.00" V-Band
- Cooling: Oil Cooled
- Wastegate: External
- Weight: 6.43kg (14.17lbs)
- Horsepower Rating: 850–990HP
