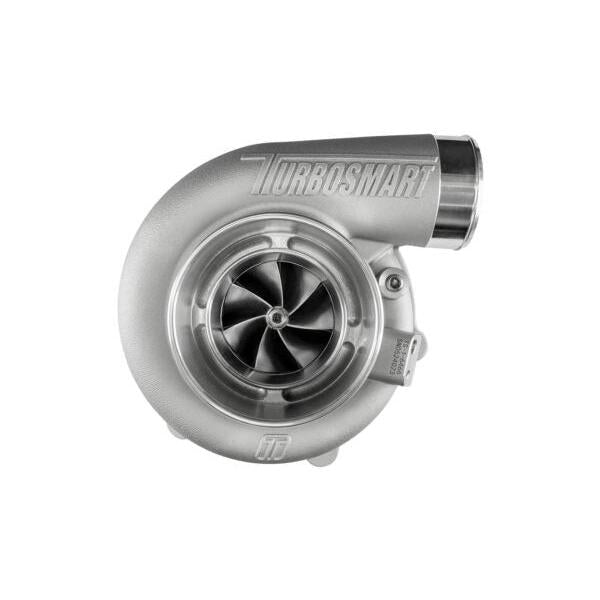

Turbosmart TS-1 Turbocharger 6466 T3 0.82 A/R Externally Wastegated
The Turbosmart TS-1 6466 Turbocharger is a premium oil-cooled, externally wastegated turbocharger designed for high-performance street and motorsport applications. Featuring a 64mm compressor inducer, 66mm turbine exducer, T3 turbine inlet, and 0.82 A/R turbine housing, it delivers fast spool, exceptional throttle response, and supports 750–930HP. Constructed with a lightweight 310S stainless steel turbine housing, billet aluminium compressor cover, proprietary dual ceramic bearing system, and a T14 Inconel turbine wheel, it provides outstanding durability, efficiency, and reliability. Every turbocharger includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings for a complete installation.
Features
- Oil-cooled TS-1 turbocharger
- Externally wastegated design
- 64mm compressor inducer and 66mm turbine exducer
- T3 turbine inlet with 0.82 A/R housing
- Lightweight 310S stainless steel investment cast turbine housing
- Billet aluminium compressor cover
- 7+7 splitter wheel compressor design
- T14 Inconel turbine wheel for extreme exhaust temperatures
- Proprietary dual ceramic bearing system
- CFD-optimised housing for improved airflow and response
- VSR speed balanced for smooth, reliable operation
- Integrated iron backplate centre housing
- Includes weld flanges, V-band clamps, gaskets, and oil feed and drain fittings
Specifications
- Compressor Inlet: 4.00" (101.6mm)
- Compressor Inducer: 64mm
- Turbine Inlet: T3 Flange
- Turbine Exducer: 66mm
- Turbine A/R: 0.82
- Turbine Outlet: 3.00" V-Band
- Cooling: Oil Cooled
- Wastegate: External
- Weight: 6.06kg (13.3lbs)
- Horsepower Rating: 750–930HP
