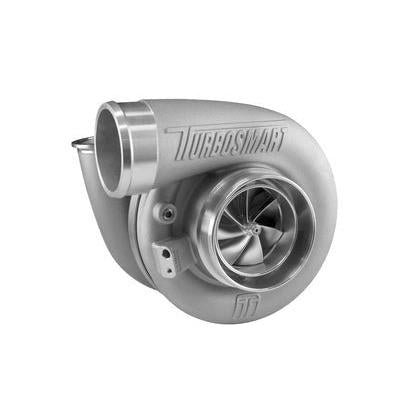

TS-1 Performance Turbocharger 8280 V-Band Reverse Rotation 0.96AR Externally Wastegated
Buy now pay later,no extra cost!
Payments from $583.45 with
The Turbosmart TS-1 8280 Turbocharger is engineered to be smaller, lighter, and faster, combining advanced materials, precision engineering, and modern manufacturing techniques to deliver exceptional performance for motorsport and high-performance street applications.
Every TS-1 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings. Featuring an oil-cooled design, the TS-1 Series uses lightweight investment-cast turbine housings, a proprietary dual ceramic bearing system, and an advanced shaft assembly to deliver exceptional transient response, reduced back pressure, and outstanding power across the rev range.
Features
- Oil-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 2618 aluminium billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- 713C Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes installation hardware, weld flanges, V-band clamps, gaskets, and oil feed/drain fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 82 mm
- Turbine inlet: 3.00" V-band
- Turbine exducer: 80 mm
- Turbine A/R: 0.96
- Turbine outlet: 3.50" V-band
- Weight: 9.63 kg (21.23 lb)
- Horsepower rating: 1300-1450 HP
