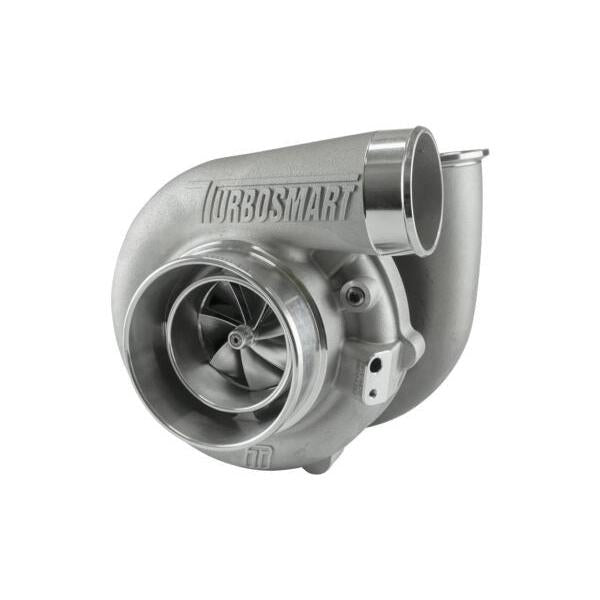

TS-1 Performance Turbocharger 6870 (Kompact) V-Band 1.07AR Externally Wastegated
by Turbosmart
$4,786.77 NZD
SKU TS-1-6870B-VB107E
Buy now pay later,no extra cost!
Payments from $478.67 with
Enjoy now. Pay Later. Interest free. Learn More
The Turbosmart TS-1 6870 Turbocharger is engineered to be smaller, lighter, and faster, combining advanced materials, precision engineering, and modern manufacturing techniques to deliver exceptional performance for motorsport and high-performance street applications.
Every TS-1 turbocharger includes everything required for installation, including weld flanges, V-band clamps, gaskets, and oil feed and drain fittings. Featuring an oil-cooled design, the TS-1 Series uses lightweight investment-cast turbine housings, a proprietary dual ceramic bearing system, and an advanced shaft assembly to deliver exceptional transient response, reduced back pressure, and impressive power across the rev range.
Features
- Oil-cooled design
- Proprietary dual ceramic bearing system
- Exceptional transient response
- 7+7 2618 aluminium billet splitter compressor wheel
- Lightweight 310S stainless steel investment-cast turbine housing
- Lightweight aluminium compressor cover
- CFD-designed housings for optimised airflow and A/R
- 713C Inconel turbine wheel for extreme exhaust gas temperatures
- VSR speed balanced
- Integrated iron backplate on the centre housing
- Includes installation hardware, weld flanges, V-band clamps, gaskets, and oil feed/drain fittings
Specifications
- Compressor inlet: 4.00" (101.6 mm)
- Compressor inducer: 68 mm
- Turbine inlet: 2.25" V-band
- Turbine exducer: 70 mm
- Turbine A/R: 1.07
- Turbine outlet: 3.00" V-band
- Weight: 6.43 kg (14.17 lb)
- Horsepower rating: 850-990 HP
