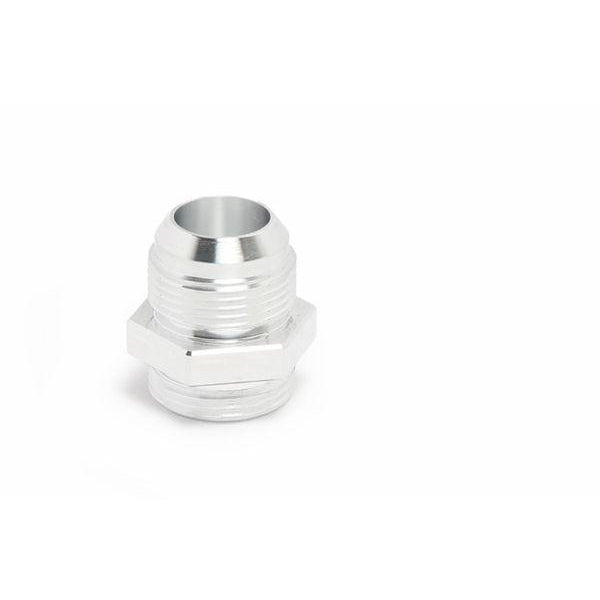

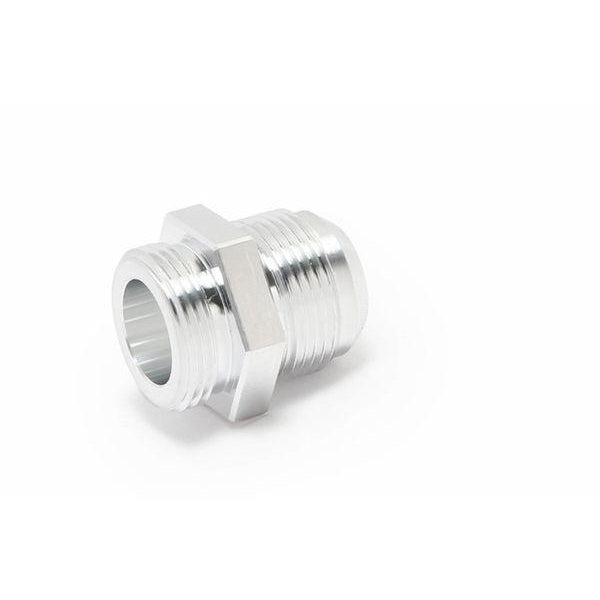

TracTuff Straight ORB to Male Flare Fittings
Buy now pay later,no extra cost!
Payments from $1.69 with
ORB stands for "O-Ring-Boss" which is an SAE straight cut thread that seals by the use of an o-ring. -16 is the most common sizes found in my cooling system parts. The opposite end of the ORB fitting is a 37° JIC flare and seals via a matching 37° seat on the hose-end. No thread sealant is necessary or recommended with these fittings.
Thread Sizes
- -16 > 1-5/16"-12 SAE
- -12 > 1-1/16"-12 SAE
- -10 > 7/8"-14 SAE
- -8 > 3/4"-16 SAE
NOTE: RAW fittings are made in house. All -10 and smaller fittings only come black anodized.
