SpeedFactory Dual Back Door Intercooler & Tucked Rad Combo

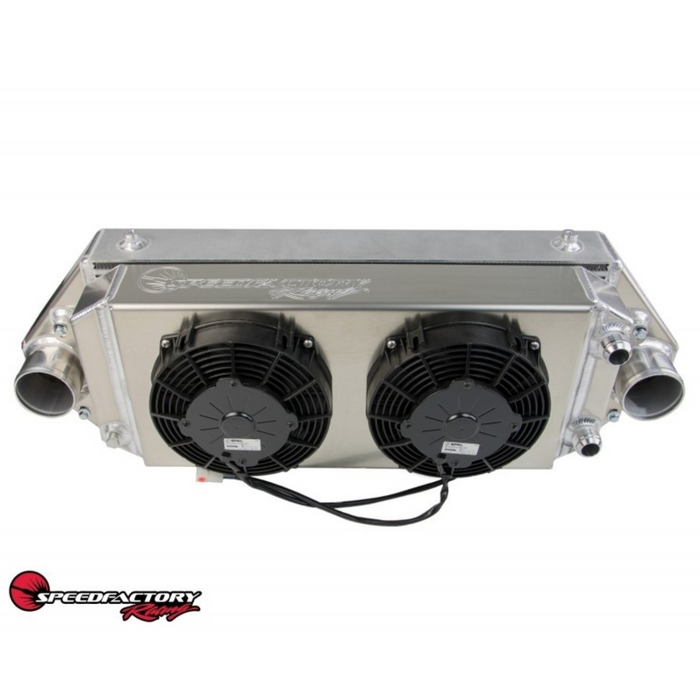

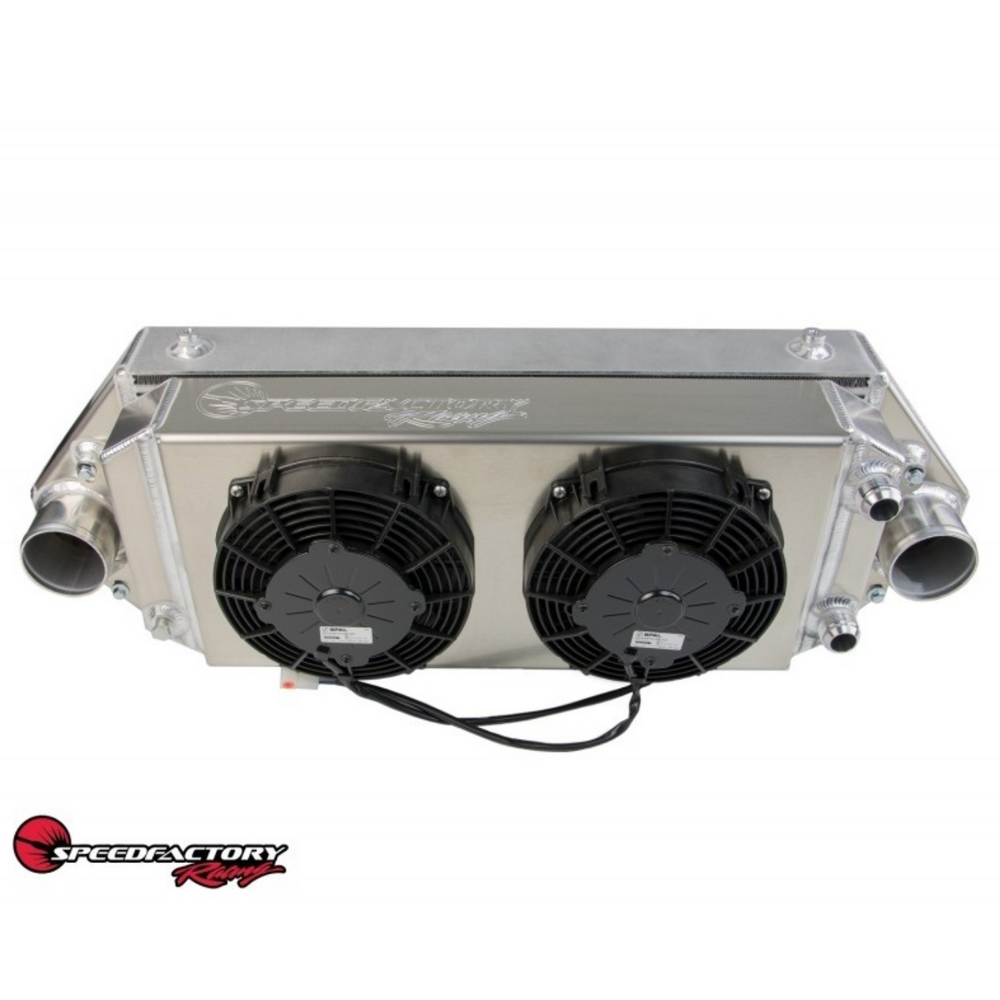

SpeedFactory Racing has combined 2 of their most popular thermal management products and created a compact, innovative cooling solution for your turbocharged Honda.
The SpeedFactory Racing Aluminum Tucked Radiator is a must-have when trying to utilize precious engine bay space. It is not only more efficient than the OEM radiator resulting in increased performance but also provides lower coolant temperatures in extreme environments and conditions. The core is 100% aluminium and is a dual-pass,dual-core cross flow design that is proven to reduce coolant temperatures by up to 20-30 degrees. The Speedfactory logo is CNC engraved into the top bar of the radiator itself. This radiator is designed for street, track, and show applications.

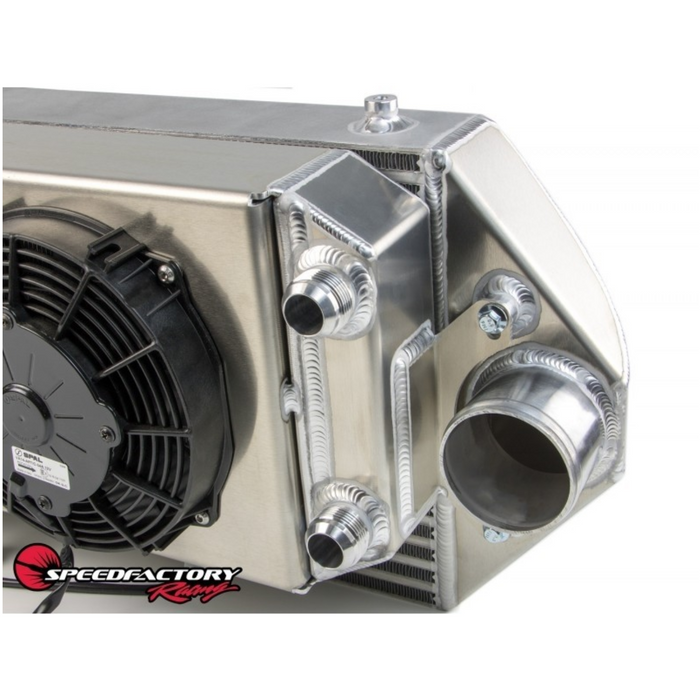

The SpeedFactory 600-850+HP rated Dual Backdoor Intercooler is built with a 3" thick, high-quality SpeedFactory aluminium bar and plate intercooler core for maximum efficiency and minimum pressure drop. Our custom engineered end tanks are carefully hand-formed in-house from H-3 5052 aluminium and are fully TIG welded. This smooth-flowing intercooler was designed specifically to fit tidily between the front frame rails on street/racing applications and requires minimum charge pipe lengths.
This intercooler comes standard with 3" inlet / 3" outlet bead rolled tube ends. Vibrant Performance Vanjen clamps are also available upon request for faster, more secure charge pipe connections. Please call or email us before you place your order if you would like the Vanjen flanges welded to your intercooler. All of our intercoolers ship complete with the SpeedFactory logo stenciled on the face of the core and have M8x1.25mm aluminium mounting bungs already attached for easy installation.
- Rated for 600-850+HP
- Intercooler core size is 24"x12"x3"
- Overall combo size is 32.5" width x 12" tall x 8.5" thick
- Will fit most Honda/Acura chassis with modification, and is available for B and K-series engines.
- Unparalleled Craftsmanship and race-proven performance
