What is a remote mounted fuel filler?
A remote mounted fuel filler is NOT located directly on the fuel tank or fuel cell, but rather somewhere else on the vehicle, such as the fender. See this blog article for more information on fuel cell filling.

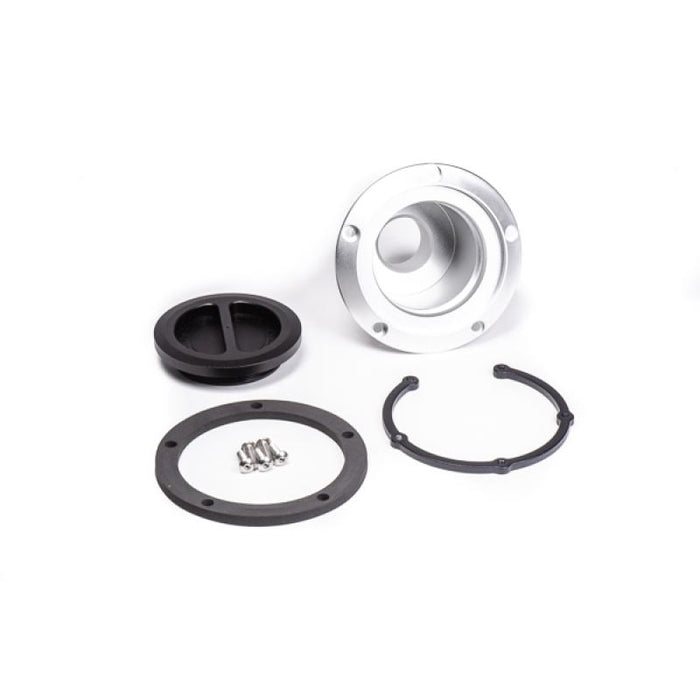

20-0505-V Remote Mount Fuel Filler, 1.5in, Vented
The 20-0505-V Remote Mount Filler, 1.5in, Vented typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.
Included:
-Vented Cap with Roll-Over Protection
-Flanged Fill Neck for 1.5" ID Hose
-Ozone/Flame Resistant Gasket
-Anodized Aluminum Nut Ring
-Stainless Steel M5 Bolts
Notes:
1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.

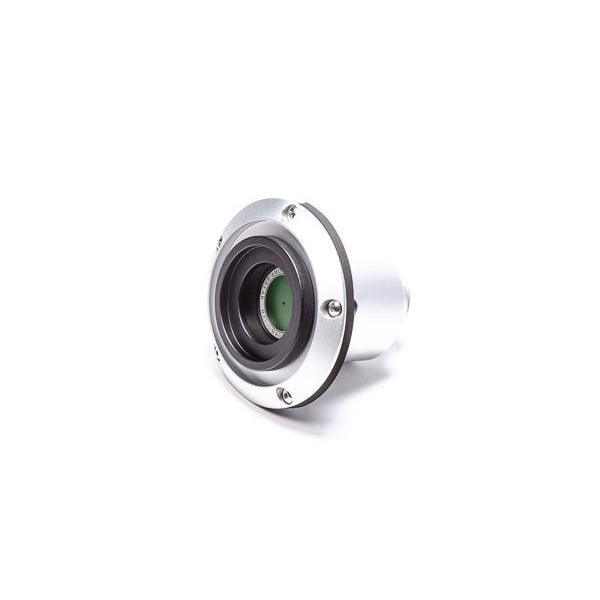

20-0504-V Dry Break, 1.5in, Female, Remote Mount, Vented
The 20-0504-V Dry Break, 1.5in, Female, Remote Mount, Vented typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The outer diameter is 4.75" and uses 4.25" P.C.D for the five M5 bolts. Total height is 4.1". Requires a 77mm (3.03") hole to be fabricated.
Included:
-20-0549-V Dry Break, 1.5in, Female, Vented
-Flanged Fill Neck for 1.5" ID Hose
-Ozone/Flame Resistant Gasket
-Anodized Aluminum Nut Ring
-Stainless Steel M5 Bolts
Notes:
1. Does not include accessories to connect to the fuel tank.
2. Is compatible with the simple fuel cap (Radium 20-0548-V Fuel Cap, Remote Mount, Vented).
Specifications:
Filler Hose Requirement: 1.5"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Height: 4.08" (Dry Break to Barb)
Mate: 20-0496 Dry Break, 1.5in, Male

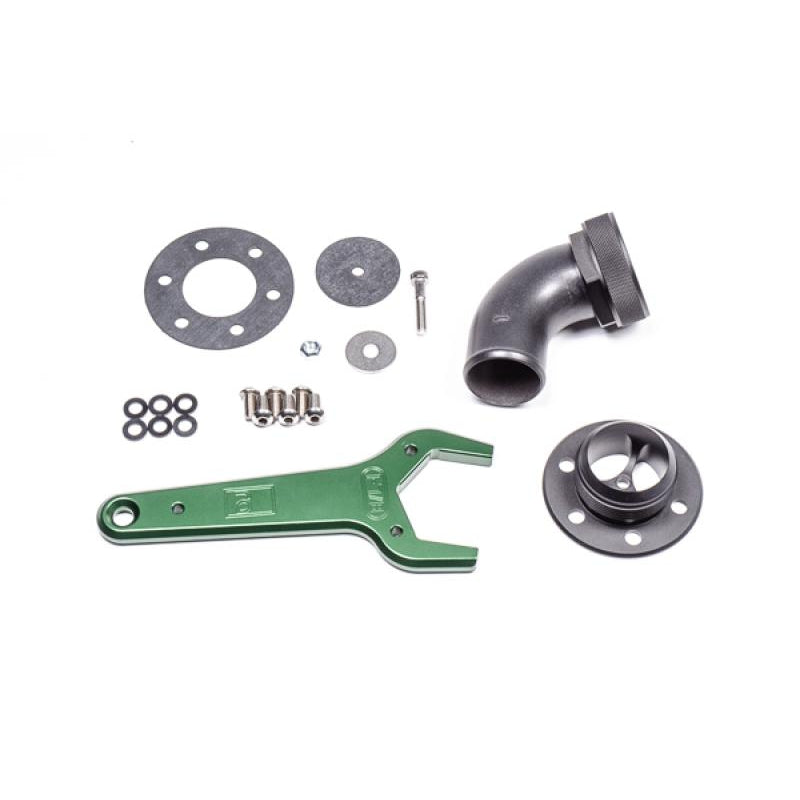

20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb
The 20-0547 Remote Mount Fill Neck is primarily used with a body-mounted remote filler (see 20-0505-V). The -24AN fill neck mates to a 24AN hose end capable of 360 degree rotation. It features a 75 degee elbow and uses a 1.5" barb (filler hose available HERE). A bespoke 1-7/8" aluminum wrench is provided for tightening the B-nut and prevent marring. The fill neck features a flapper check valve for rollover protection.
Included:
-24AN Flanged Fill Neck
-24AN Hose End Elbow for 1.5" ID Hose
-Aluminum Wrench, 1-7/8"
-Viton Gasket Flange Seal
-Viton Flapper Valve
-Nylon Sealing Washers
-Stainless Steel Hardware
Note: Does not include filler hose, fuel cap, etc.

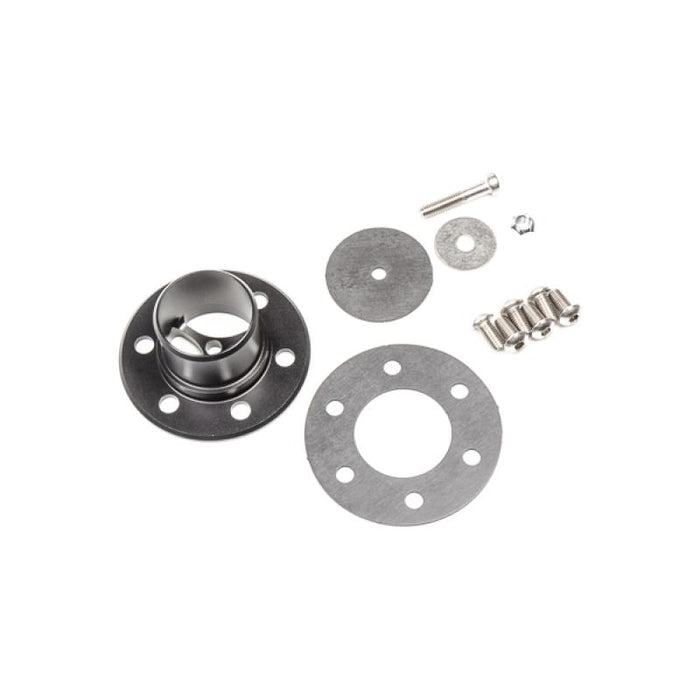

20-0527 Remote Mount Fill Neck, Straight, 1.5in Barb
The 20-0527 Remote Mount Fill Neck, Straight, 1.5in Barb is multi-functional and is primarily used with a body-mounted remote filler (not included). The fill neck has a machined hose barb connection for 1.5" filler hose (available HERE). The fill neck features a flapper check valve for rollover protection.
Included:
-Flanged Fill Neck for 1.5" ID Hose
-Viton Gasket Flange Seal
-Viton Flapper Valve
-Nylon Sealing Washers
-Stainless Steel Hardware
20-0548-V Fuel Cap, Remote Mount, Vented
This is replacement vented fill cap. This is included with 20-0505-V and is compatible with 20-0504-V.
