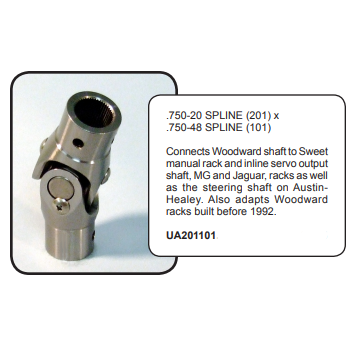

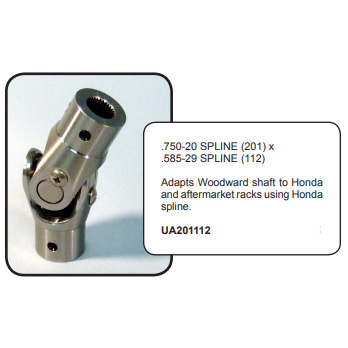

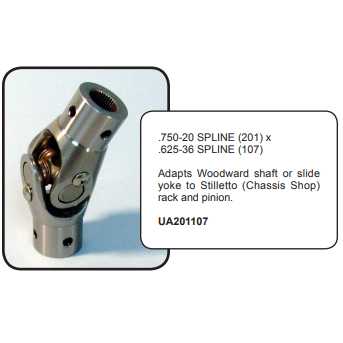

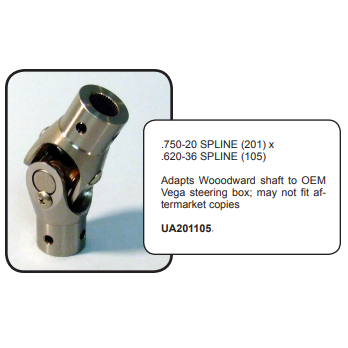

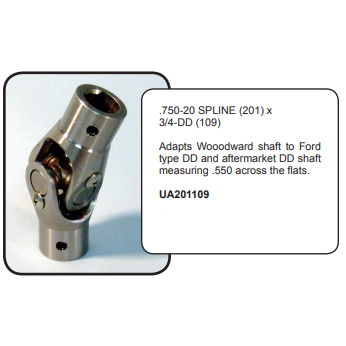

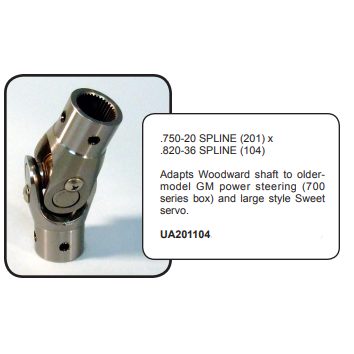

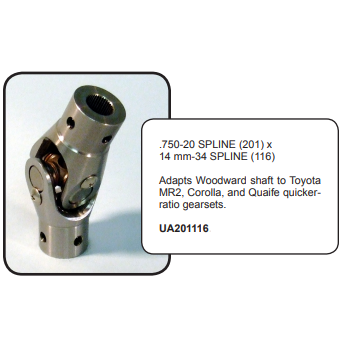

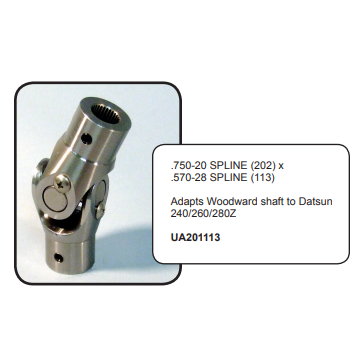

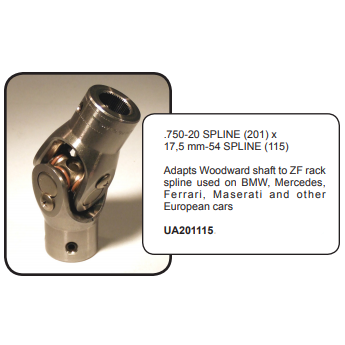

WOODWARD Needle Bearing U-Joints

$198.72 NZD
SKU WOODWARD-NB-01-UA201101
Buy now pay later,no extra cost!

Payments from $19.87 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Since 1989, Woodward steering universal joints have been the preferred choice of race car builders everywhere, and have won every major race and series championship in North America many times over, including the NASCAR championship. Woodward pioneered the use of caged needle rollers with a slight preload to create a joint without backlash and with noticeably lower reversing inertia than conventional automotive designs. That means enhanced sensitivity at the steering wheel, and makes even the smallest steering input more effective—whether on a superspeedway at 200MPH or sideways on a dirt bull ring.

Mechanical Specifications

  • Weight 310g (smaller hole=heavier part; larger hole=lighter part)
  • Rotational clearance circle 1.75 (44 mm) diameter
  • Maximum possible angular misalignment 32 degrees
  • Recommended operating angle <20 degrees
  • Torque resulting in bearing damage>250 lb/ft (>339 Nm)
  • Torque resulting in plastic deformation >275 lb/ft (>372 Nm)
  • Ultimate breaking torque >300 lb/ft (>406 Nm)

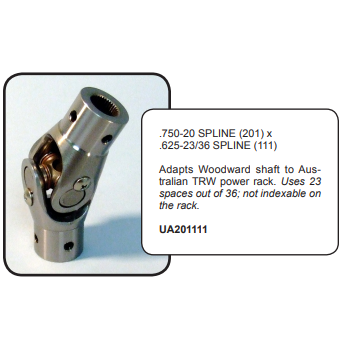

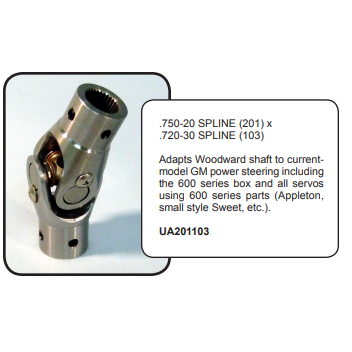

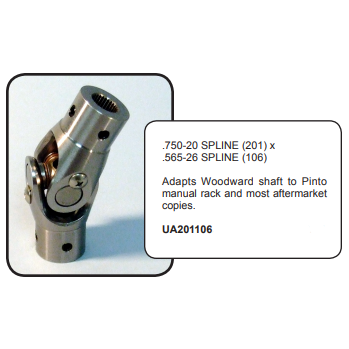

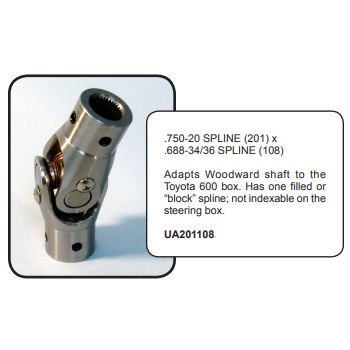

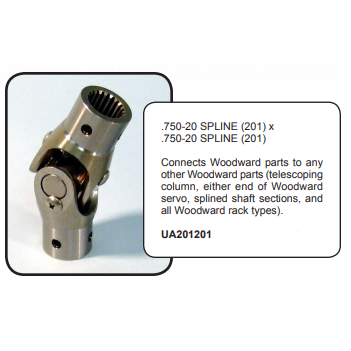

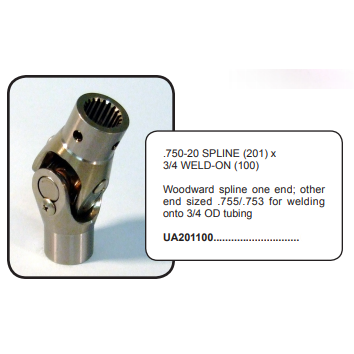

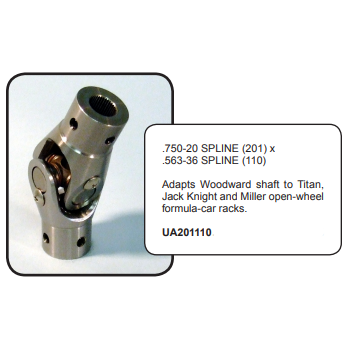

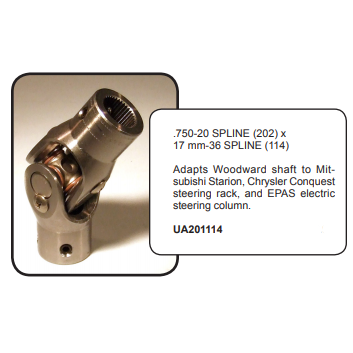

Note: Universals come with the standard Woodward 201 spline on one side or with blank hole on both sides. We can order specials to meet your requirements on request.
